Technical Specifications
Parameters and characteristics for this part
| Specification | WJC1206LJUMPFNR |
|---|---|
| Features | High Voltage, Current Sense |
| Height - Seated (Max) [Max] | 0.6 mm |
| Height - Seated (Max) [Max] | 0.024 in |
| Number of Terminations [custom] | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 1206 (3216 Metric) |
| Resistance | 0 mOhms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 " |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| N/A | 1441 | $ 0.51 | ||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
Description
General part information

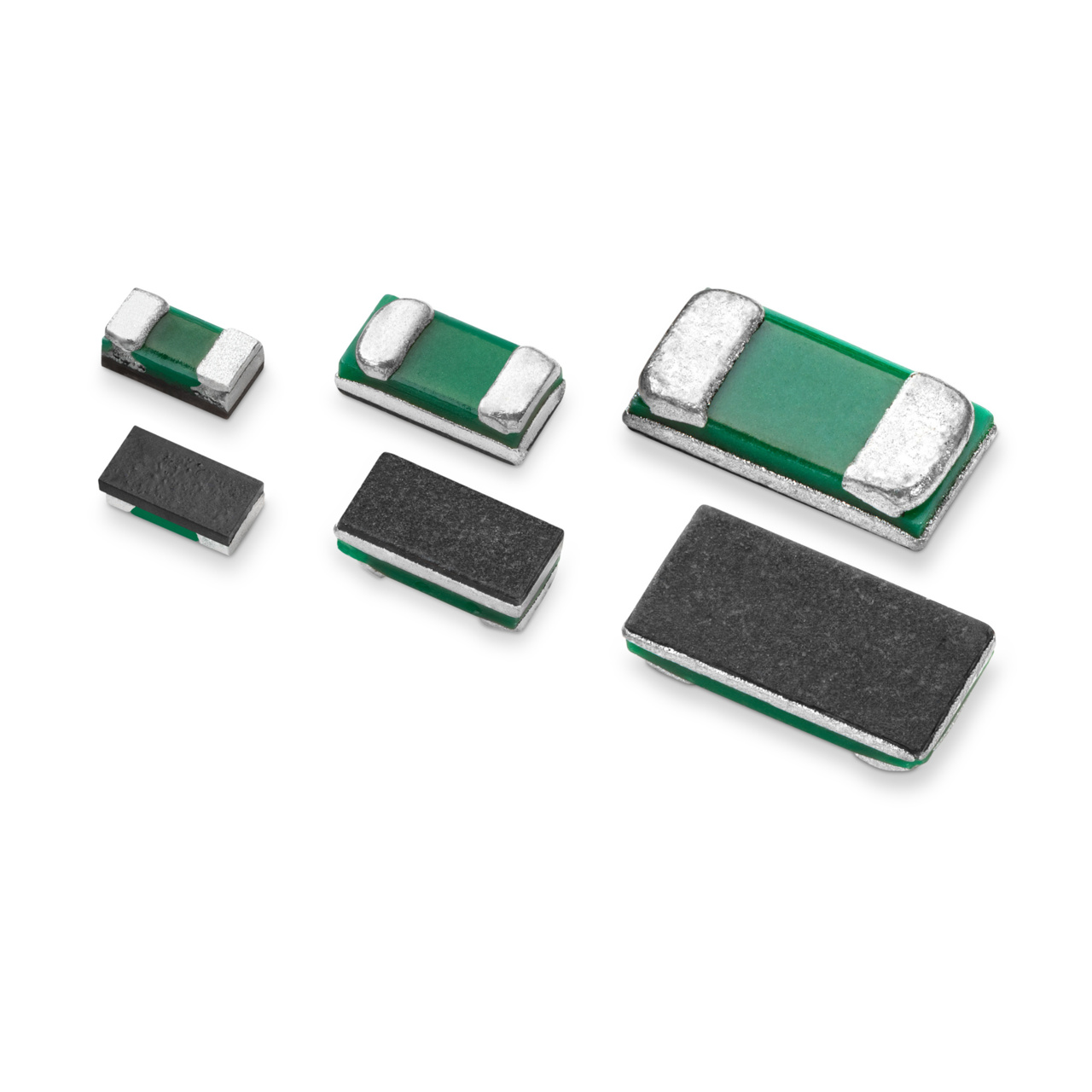

WJC1206LJUMPF Series
Littelfuse WJC Series is a high-current metal foil jumper chip.
