MS3108E2024S

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Deep-Dive with AI

Search across all available documentation for this part.

Connectors, Interconnects

MS3108E2024S

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E2024S

Applications	Industrial, Aviation, Marine, Military
Color	Olive Drab
Connector Type	Plug, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 13 A
Fastening Type	Threaded
Features	Cable Clamp, Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	20
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

MS3108E20 Series

Part	Shell Material	Orientation	Shell Finish	Contact Finish - Mating	Qualification	Applications	Contact Material	Features	Ingress Protection	Fastening Type	Shielding	Voltage Rating	Number of Positions	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Insert Material	Color	Primary Material	Backshell Material, Plating	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
ITT Cannon, LLC MS3108E2024S	Aluminum Alloy	N (Normal)	Olive Drab Cadmium	Silver	MIL-DTL-5015	Aviation Industrial Marine Military	Copper Alloy	Cable Clamp Coupling Nut	Environment Resistant	Threaded	Unshielded	500 VAC 700 VDC	4	Free Hanging (In-Line) Right Angle	24	20	Plug Female Sockets	13 A 46 A	-55 C	125 °C	Military	Plastic	Olive Drab	Metal
ITT Cannon, LLC MS3108E20-19P	Aluminum Alloy	N (Normal)	Olive Drab Chromate over Cadmium	Silver	MIL-5015	Marine Military	Copper Alloy	Cable Clamp Coupling Nut	Environment Resistant	Threaded	Unshielded			Free Hanging (In-Line) Right Angle	20	19	Plug Male Pins		-55 C	125 °C		Neoprene	Olive Drab	Metal	Aluminum Alloy Olive Drab Chromate over Cadmium
ITT Cannon, LLC MS3108E20-19S	Aluminum Alloy	N (Normal)	Olive Drab Cadmium	Silver	MIL-DTL-5015			Cable Clamp Coupling Nut	Environment Resistant	Threaded		500 VAC 700 VDC		Free Hanging (In-Line) Right Angle	20	19	Plug Female Sockets	74 A	-55 C	125 °C	Military		Olive Drab	Metal

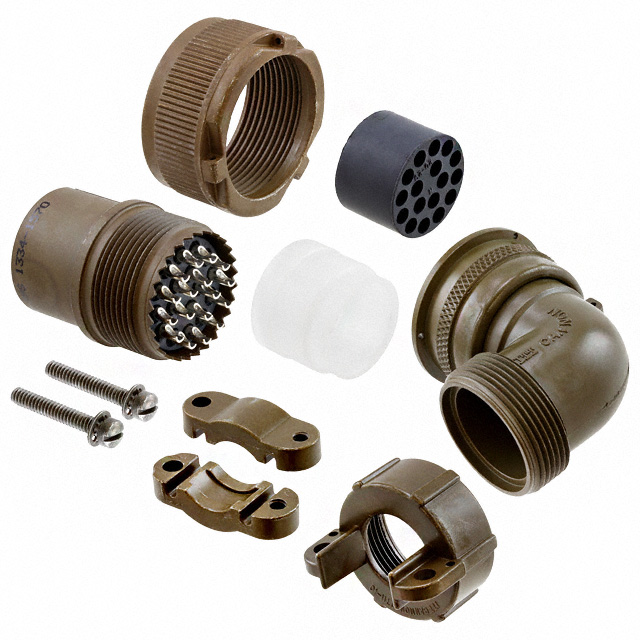

ITT Cannon, LLC MS3108E20-29S	Aluminum Alloy	N (Normal)	Olive Drab Cadmium	Silver	MIL-DTL-5015			Cable Clamp Coupling Nut	Environment Resistant	Threaded		500 VAC 700 VDC		Free Hanging (In-Line) Right Angle			Plug Female Sockets	22 A	-55 C	125 °C	Military		Olive Drab	Metal		20	29
ITT Cannon, LLC MS3108E20-29SWF187	Aluminum Alloy	W	Olive Drab Cadmium	Silver	MIL-DTL-5015			Cable Clamp Coupling Nut	Environment Resistant	Threaded		500 VAC 700 VDC		Free Hanging (In-Line) Right Angle			Plug Female Sockets	22 A	-55 C	125 °C	Military		Olive Drab	Metal		20	29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 99.31
Newark	Each	50	$ 94.94
		100	$ 93.58
		250	$ 91.55

Description

General part information

MS3108E20 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available
