Technical Specifications
Parameters and characteristics for this part
| Specification | 869-10/008 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CSA, UL, VDE |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 10 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.45 mm |
| Panel Cutout Dimensions [y] | 21.89 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 597 | $ 8.43 | |
| Tray | 1 | $ 14.06 | ||
| 10 | $ 10.80 | |||
| 35 | $ 9.42 | |||
| 70 | $ 8.75 | |||
| 105 | $ 8.39 | |||
| 245 | $ 7.69 | |||
| 455 | $ 7.24 | |||
| 945 | $ 6.75 | |||
Description
General part information
869-10 Series

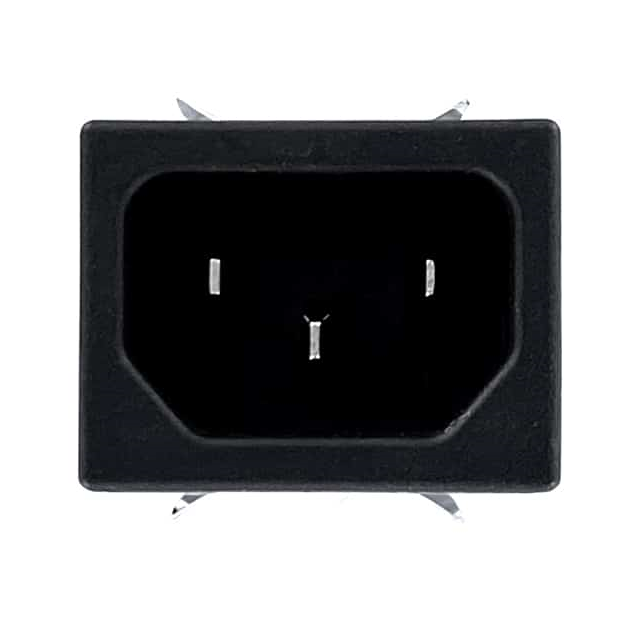

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
