M80-4601842
Connectors, Interconnects

M80-4601842

Active
Harwin Inc.

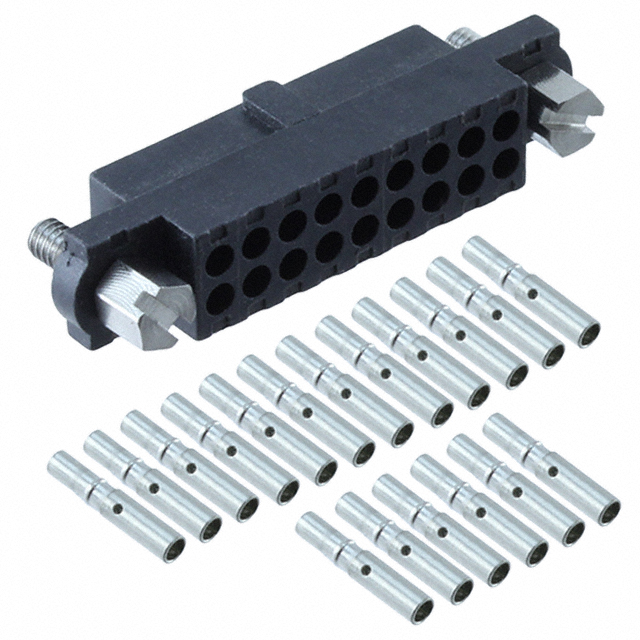

9+9 POS. FEMALE DIL 22AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001M80-0110001+4
M80-4601842
Connectors, Interconnects

M80-4601842

Active
Harwin Inc.

9+9 POS. FEMALE DIL 22AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001M80-0110001+4

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-4601842
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
FeaturesPolarizing Key, Jackscrews
Mounting TypeFree Hanging (In-Line)
Number of Positions18
Number of Rows [custom]2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge22 AWG
Wire TypeDiscrete

M80-460 Series
