Connectors, Interconnects

1760158

Active

Phoenix Contact

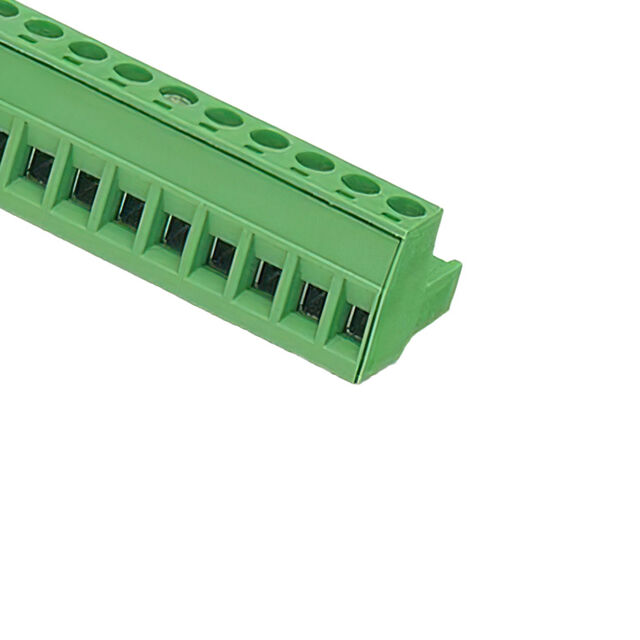

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Connectors, Interconnects

1760158

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1760158

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Features	Retention Latches (Non-Wire Side), Positions Stamped
Insulation Height [custom]	0.591 in
Insulation Height [custom]	15 mm
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	20
Pitch	5.08 mm
Pitch	0.2 in
Plug Wire Entry	180 °
Positions Per Level	20
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	250 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	7 mm

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Strip Length	Screw Size	Insulation Height [custom]	Insulation Height [custom]	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Mating Finish	Pitch	Pitch	Number of Levels	Mounting Type	Color	Plug Wire Entry	Current - IEC	Termination Style	Voltage - IEC	Positions Per Level	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Material Flammability Rating	Housing Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Header Orientation	Features	Current - UL	Insulation Height [custom]	Insulation Height [custom]
Phoenix Contact 1995143	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5.08 mm	0.2 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Rising Cage Clamp	250 V	11	11	30 AWG	12 AWG
Phoenix Contact 1927564											Header Male Pins Shrouded (4 Side)			Tin	5.08 mm	0.2 in	1	Through Hole	Black		12 A	Solder	400 V	2	2			8.89 mm	0.35 in	UL94 V-0	Polyamide (PA) Nylon	0.114 in	2.9 mm	300 V	90° Right Angle	Mating and Mounting Flange
Phoenix Contact 1911910			0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5 mm	0.197 in	1	Free Hanging (In-Line)	Green	180 °	16 A	Screw - Rising Cage Clamp	630 V	8	8	30 AWG	12 AWG			UL94 V-0	Polyamide (PA) Nylon			300 V			16 A
Phoenix Contact 1894613	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5.08 mm	0.2 in	1	Free Hanging (In-Line)	Yellow	180 °	12 A	Screw - Rising Cage Clamp	250 V	2	2	30 AWG	12 AWG
Phoenix Contact 1777918	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	10 mm	M2.5			Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5.08 mm	0.2 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Pressure Clip	630 V	14	14	30 AWG	12 AWG			UL94 V-0	Polyamide (PA) Nylon			300 V		Mating Flange Retention Latches (Non-Wire Side)		27.51 mm	1.083 in
Phoenix Contact 1717796											Header Male Pins Shrouded (4 Side)			Tin	5.08 mm	0.2 in	1	Through Hole	Black		16 A	Solder	250 V	4	4										90° Right Angle	Mating and Mounting Flange
Phoenix Contact 1778043	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5.08 mm	0.2 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Rising Cage Clamp	630 V	8	8	30 AWG	12 AWG			UL94 V-0	Polyamide (PA) Nylon			300 V		Mating Flange
Phoenix Contact 1779534	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	10 mm	M2.5	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5 mm	0.197 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Pressure Clip	630 V	14	14	30 AWG	12 AWG			UL94 V-0	Polyamide (PA) Nylon			300 V
Phoenix Contact 1760158			0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5.08 mm	0.2 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Rising Cage Clamp	250 V	20	20	30 AWG	12 AWG									Positions Stamped Retention Latches (Non-Wire Side)
Phoenix Contact 1759392	2.5 mm˛	0.2 mm˛	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	M3	0.591 in	15 mm	Plug Female Sockets	2.5 mm²	0.2 mm²	Tin	5 mm	0.197 in	1	Free Hanging (In-Line)	Green	180 °	12 A	Screw - Rising Cage Clamp	630 V	16	16	30 AWG	12 AWG			UL94 V-0	Polyamide (PA) Nylon			300 V		Retention Latches (Non-Wire Side) Strain Relief	10 A
