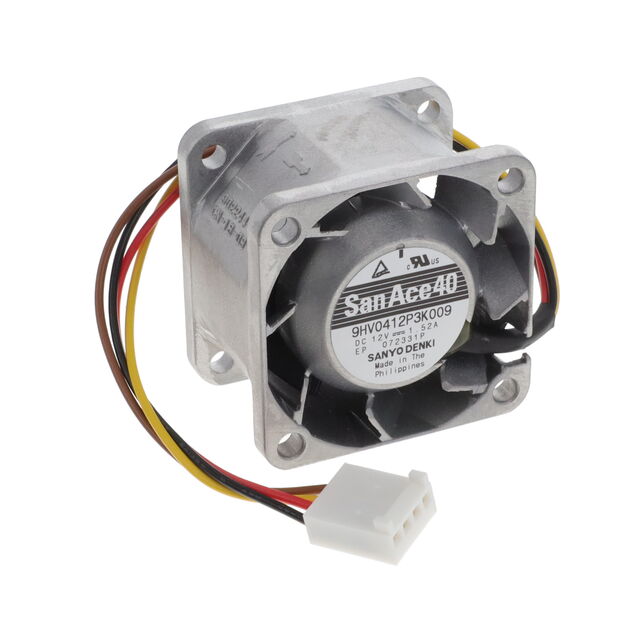

9HV0412P3K009

Active

FAN AXL 40X28MM 12VDC RECT CONN

Search across all available documentation for this part.

Fans, Blowers, Thermal Management

Active

FAN AXL 40X28MM 12VDC RECT CONN

Technical Specifications

Parameters and characteristics for this part

Specification	9HV0412P3K009

Bearing Type	Ball
Current Rating (Amps)	1.52 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control, Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-4 °F
Operating Temperature [Min]	-20 ░C
RPM	25000 RPM
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight [custom]	0.133 lb
Weight [custom]	60.33 g
Width [x]	28 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Current Rating (Amps)	Features	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Termination	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Width [x]	Noise	RPM	Lifetime @ Temp.	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	Approval Agency
Sanyo Denki America Inc. 9HV0412P3K009	10.8 VDC	12.6 VDC	Plastic	Plastic	1.52 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.133 lb	60.33 g	40 mm	40 mm	Tubeaxial	4 Position Rectangular Connector	12 VDC	60 °C	60 °C	-4 °F	-20 ░C	Ball	28 mm	65 dB	25000 RPM

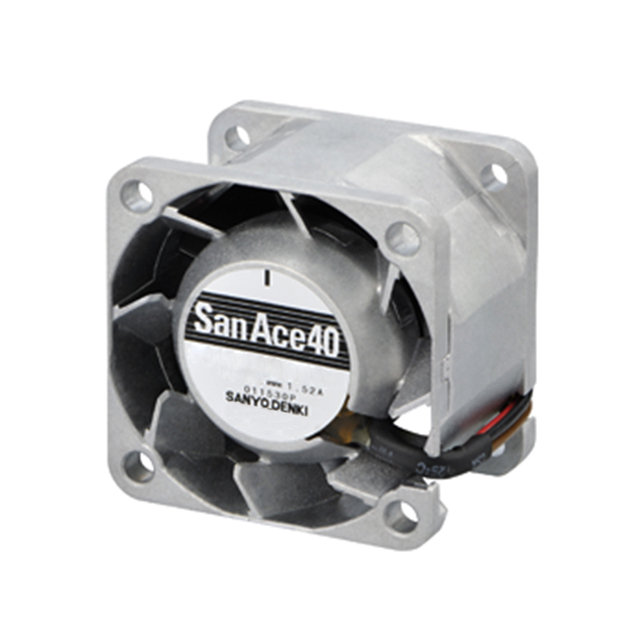

Sanyo Denki America Inc. 9HV0412P3K001	10.8 VDC	12.6 VDC	Plastic	Aluminum	1.52 A	PWM Control Speed Sensor (Tach)	0.133 lb	60.33 g	40 mm	40 mm	Tubeaxial	4 Wire Leads	12 VDC	60 °C	60 °C	-4 °F	-20 ░C	Ball	28 mm	65 dB	25000 RPM	40000 Hrs	18.3 W	1100 Pa	4.42 in H2O	0.82 m³/min	29.3 CFM	CSA TUV UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 4 Position Rectangular Connector
