Connectors, Interconnects

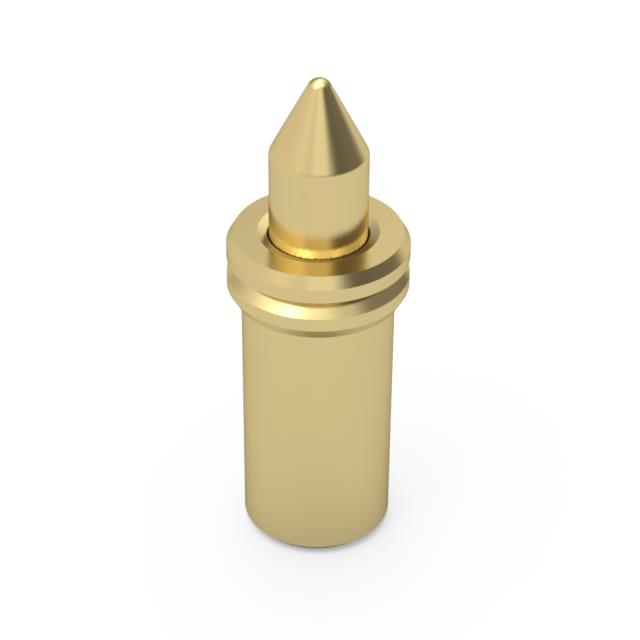

7941-0-15-20-70-14-11-0
ActiveMill-Max Manufacturing Corp.
THROUGH-HOLE MOUNT SPRING-LOADED
Deep-Dive with AI
Search across all available documentation for this part.
Documents7941-0-15-20-70-14-11-0 | Datasheet
Connectors, Interconnects
7941-0-15-20-70-14-11-0
ActiveMill-Max Manufacturing Corp.
THROUGH-HOLE MOUNT SPRING-LOADED
Deep-Dive with AI
Documents7941-0-15-20-70-14-11-0 | Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7941-0-15-20-70-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Contact Finish Thickness | 0.51 µm |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 6.4 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 5.61 mm |
| Maximum Working Height [Max] | 0.221 in |
| Minimum Working Height | 3.84 mm |
| Minimum Working Height | 0.151 in |
| Mounting Type | Through Hole |
| Operating Force - Mid Compression | 70 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pad Layout Dimension | 1.68 mm |
| Pad Layout Dimension | 0.066 " |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height | 4.72 mm |
| Recommended Working Height | 0.186 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.57 | |||
| 3000 | $ 0.52 | |||
| N/A | 1671 | $ 1.07 | ||
Description
General part information
7941-0 Series
Contact Spring Through Hole
