Connectors, Interconnects

PHG.1T.512.CTLC45

Active

LEMO

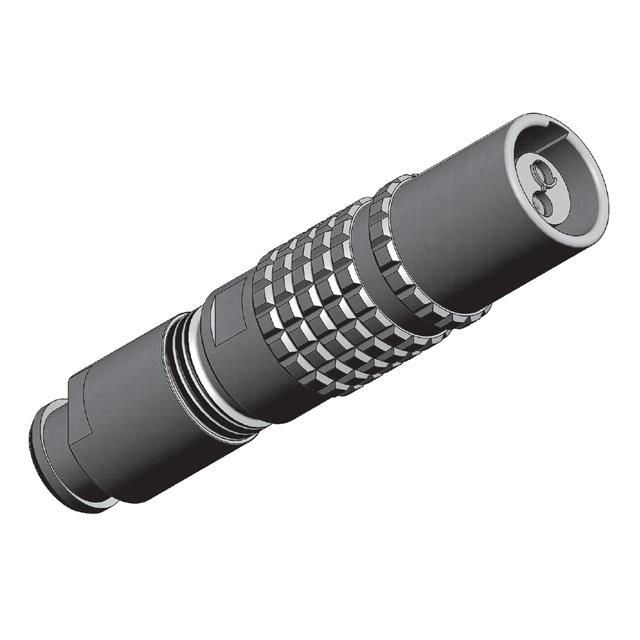

CABLE MOUNT RECEPTACLE 2-PAIR

Search across all available documentation for this part.

Connectors, Interconnects

Active

LEMO

CABLE MOUNT RECEPTACLE 2-PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	PHG.1T.512.CTLC45

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [diameter]	0.177 in
Cable Opening [Max] [diameter]	4.5 mm
Cable Opening [Min] [diameter]	4.1 mm
Cable Opening [Min] [diameter]	0.161 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	512
Shielding	Shielded

Part	Shell Size - Insert	Connector Type	Primary Material	Mounting Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Contact Finish - Mating	Features	Number of Positions	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shell Material	Insert Material	Shell Finish	Ingress Protection	Shielding	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Current Rating (Amps)	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO PHG.1T.512.CTLC45	512	Receptacle Female Sockets	Metal	Free Hanging (In-Line)	G	-55 °C	200 °C	Silver	Detent Lock Push-Pull	Gold	Backshell	12	Brass Chrome	0.177 in	4.1 mm	0.161 in	4.5 mm	Brass	Polytetrafluoroethylene (PTFE)	Chrome	IP68 - Dust Tight Waterproof	Shielded
LEMO PHG.1T.308.CLLC65Z	308	Receptacle Female Sockets	Metal	Free Hanging (In-Line)	G	-55 °C	200 °C	Silver	Push-Pull	Gold	Backshell	8	Brass Chrome					Brass	Polyetheretherketone (PEEK)	Chrome	IP66/IP68	Shielded	0.256 in	0.24 in	6.5 mm	6.1 mm	UL94 V-0	5 A	Bronze	59 Áin	1.5 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.92

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
