EVQ7220-R-00A

Active

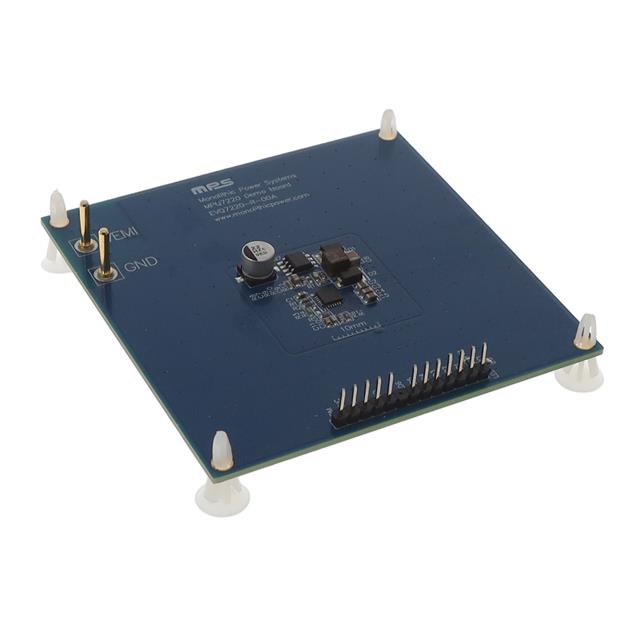

LED LIGHTING DEVELOPMENT TOOLS EVALUATION BOARD FOR MPQ7220

Search across all available documentation for this part.

Development Boards, Kits, Programmers

Active

LED LIGHTING DEVELOPMENT TOOLS EVALUATION BOARD FOR MPQ7220

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Outputs and Type	Current - Output / Channel	Features	Utilized IC / Part	Contents	Mounting Type	Voltage - Supply (Max) [Max]	Supplier Device Package	Dimming	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Frequency [Min]	Frequency [Max]	Package / Case	Number of Outputs	Topology	Grade	Type
Monolithic Power Systems Inc. EVQ7220-R-00A	Board(s)	3.5 V	36 V	42 V	6 Non-Isolated Outputs	100 mA	Dimmable	MPQ7220-AEC1	Board(s)
Monolithic Power Systems Inc. MPQ7220GR-AEC1-P						100 mA				Surface Mount	36 V	24-QFN (4x4)	PWM	3.5 V	-40 C	125 °C	AEC-Q100	400 kHz	2.2 MHz	24-VFQFN Exposed Pad	6	Step-Up (Boost)	Automotive	DC DC Regulator
Monolithic Power Systems Inc. MPQ7220GR-AEC1-Z						100 mA				Surface Mount	36 V	24-QFN (4x4)	PWM	3.5 V	-40 C	125 °C	AEC-Q100	400 kHz	2.2 MHz	24-VFQFN Exposed Pad	6	Step-Up (Boost)	Automotive	DC DC Regulator
Monolithic Power Systems Inc. MPQ7220GF-AEC1-P						100 mA				Surface Mount	36 V	28-TSSOP-EP	PWM	3.5 V	-40 C	125 °C	AEC-Q100	400 kHz	2.2 MHz	28-TSSOP (0.173" 4.40mm Width) Exposed Pad	6	Step-Up (Boost)	Automotive	DC DC Regulator
Monolithic Power Systems Inc. MPQ7220GF-AEC1-Z						100 mA				Surface Mount	36 V	28-TSSOP-EP	PWM	3.5 V	-40 C	125 °C	AEC-Q100	400 kHz	2.2 MHz	28-TSSOP (0.173" 4.40mm Width) Exposed Pad	6	Step-Up (Boost)	Automotive	DC DC Regulator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00
	N/A	1	$ 51.27
Mouser	N/A	1	$ 50.00
Newark	Each	1	$ 67.10

General part information

MPQ7220-AEC1 - 6 Non-Isolated Outputs Dimmable LED Driver Evaluation Board
