Connectors, Interconnects
PC142AX
ActiveSwitchcraft Inc.
CONN JACK MONO 3.55MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects

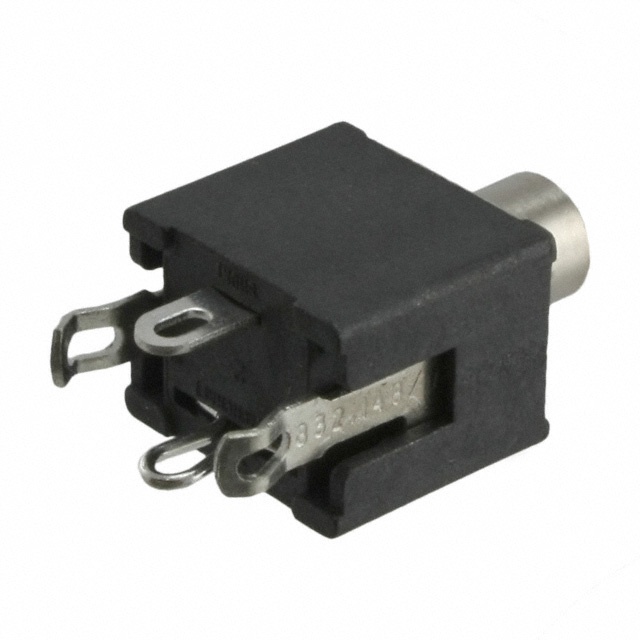

PC142AX
ActiveSwitchcraft Inc.
CONN JACK MONO 3.55MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC142AX |
|---|---|
| Actual Diameter [diameter] | 3.68 mm |
| Actual Diameter [diameter] | 0.145 in |
| Body Color | Silver, Black |
| Body Material | Copper Alloy |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 0.25 A |
| Gender | Female |
| Housing Material | Plastic |
| Includes | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 3.55 mm |
| Industry Recognized Mating Diameter [diameter] | 0.14 " |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.35 | |
| 10 | $ 3.95 | |||
| 25 | $ 3.74 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.48 | |||
| 300 | $ 3.06 | |||
Description
General part information
PC142A Series
3.55mm (0.14", Tini Plug) Phone Jack Mono Connector Solder Eyelet(s)
