Optoelectronics
HLMT-QH00-T0011
ActiveBroadcom Limited

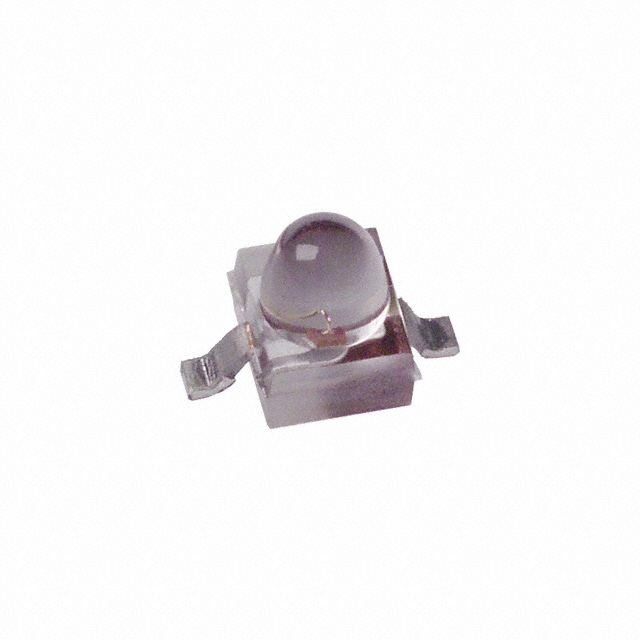

LED RED CLEAR DOME LENS TYPE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsOption 11,12,21,22,31,32,1L,1S,2L,2S
Optoelectronics
HLMT-QH00-T0011
ActiveBroadcom Limited
LED RED CLEAR DOME LENS TYPE SMD
Deep-Dive with AI
DocumentsOption 11,12,21,22,31,32,1L,1S,2L,2S
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMT-QH00-T0011 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.92 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.78 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 1.99 mm |
| Size / Dimension [y] | 2.21 mm |
| Supplier Device Package | Dome Lens Type |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 615 nm |
| Wavelength - Peak | 621 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4500 | $ 1.16 | |
Description
General part information
HLMT-QH00 Series
Red 615nm LED Indication - Discrete 2V 2-SMD, Gull Wing
