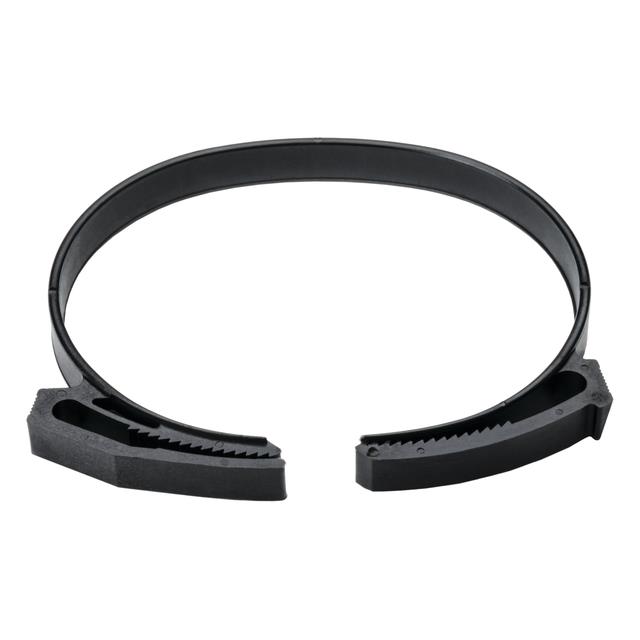

Specification	SNP70GHS0C2

Color	Black
Features	Heat Stabilized, Impact Resistant
Length [Max]	3.02 in
Length [Max]	76.71 mm
Length [Min]	46.58 mm
Length [Min]	1.834 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.078 in
Material Thickness	1.98 mm
Opening Size [Max]	2.961 ", 75.21 mm
Opening Size [Min]	2.562 ", 65.07 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [y]	9.5 mm
Width [y]	0.374 in

SNP70G Series

Part	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Material Flammability Rating	Features	Material	Material Thickness	Material Thickness	Opening Size [Min]	Opening Size [Max]	Color	Width [y]	Width [y]	Type	Type Attributes
HELLERMANNTYTON SNP70GHS0C2	3.02 in	76.71 mm	46.58 mm	1.834 in	UL94 HB	Heat Stabilized Impact Resistant	Polyamide (PA66) Nylon 6/6 Glass Filled	0.078 in	1.98 mm	2.562 " 65.07 mm	2.961 " 75.21 mm	Black	9.5 mm	0.374 in	Clamp Hose	Push-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
