Switches

45-2231.21F0.000

Active

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Switches

Active

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	45-2231.21F0.000

(Select First, Then Apply Filters) Compatible Series	EAO, 45
Actuator Type	Round, Pushbutton
Illumination	Illuminated - Amber
Panel Cutout Dimensions [diameter]	22.3 mm
Requires	Contact Block(s), Illumination Source
Type	Momentary

45-2231 Series

Part	Type	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Requires

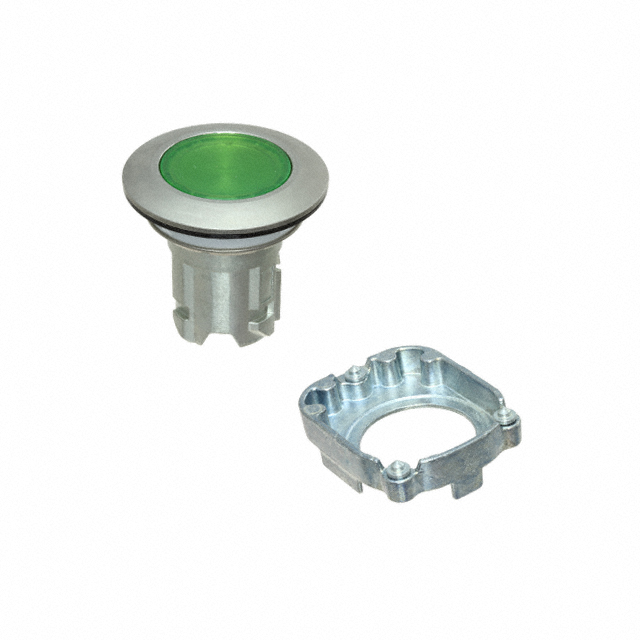

EAO 45-2231.4FH0.000	Momentary	45 EAO	Pushbutton Round	30.5 mm	Illuminated - Green	Contact Block(s) Illumination Source
EAO 45-2231.4FG0.000	Momentary	45 EAO	Pushbutton Round	30.5 mm	Illuminated - Yellow	Contact Block(s) Illumination Source
EAO 45-2231.21F0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Amber	Contact Block(s) Illumination Source
EAO 45-2231.31K0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated	Contact Block(s) Illumination Source

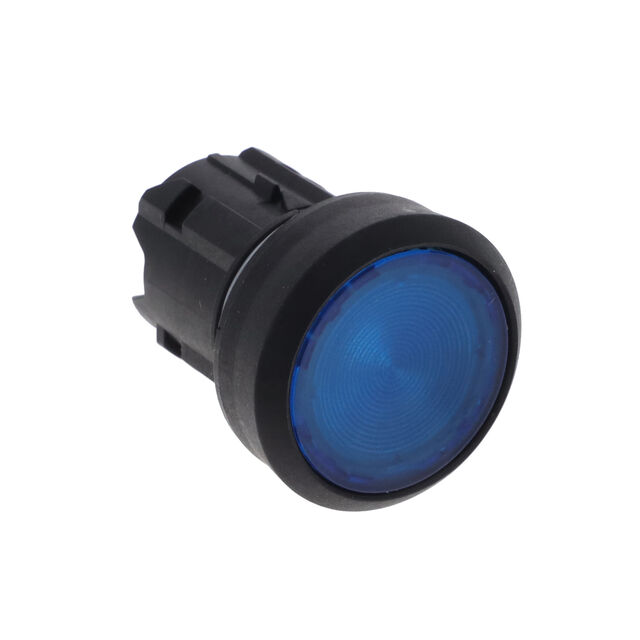

EAO 45-2231.11J0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Blue	Contact Block(s) Illumination Source

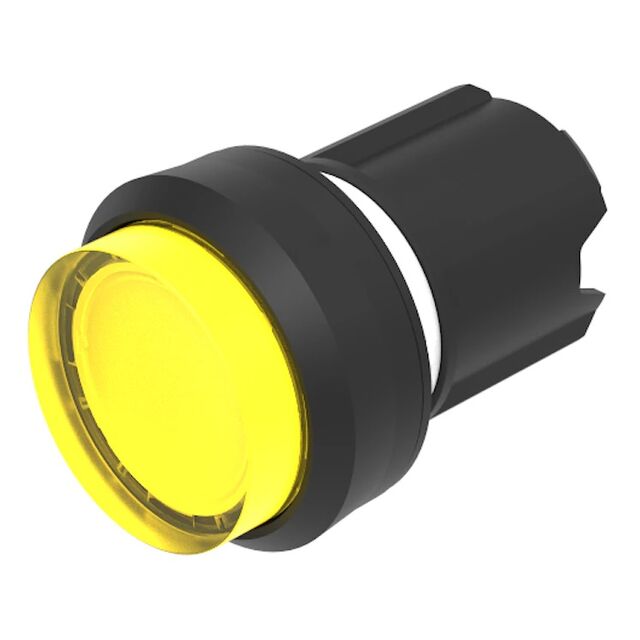

EAO 45-2231.12G0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Yellow	Contact Block(s) Illumination Source

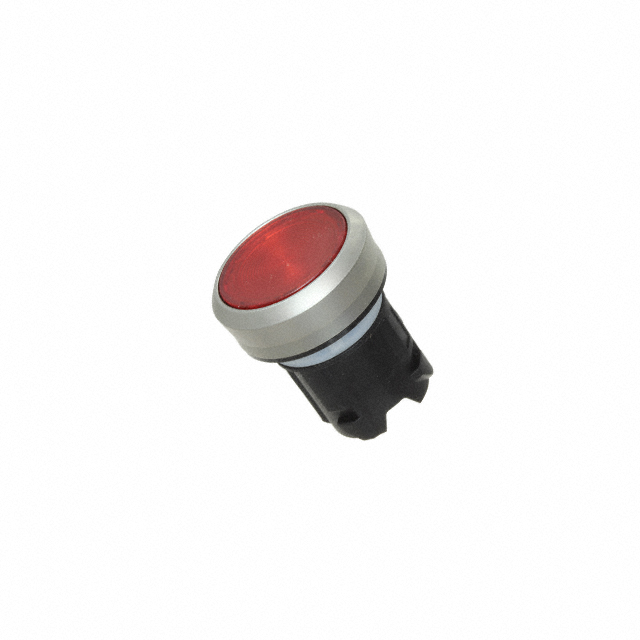

EAO 45-2231.31E0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Red	Contact Block(s) Illumination Source
EAO 45-2231.14J0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Blue	Contact Block(s) Illumination Source
EAO 45-2231.22J0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - Blue	Contact Block(s) Illumination Source
EAO 45-2231.11N0.000	Momentary	45 EAO	Pushbutton Round	22.3 mm	Illuminated - White	Contact Block(s) Illumination Source

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Round Illuminated - Amber
