Optoelectronics

ELSW-F51Y1-0LPNM-AA3A5

Active

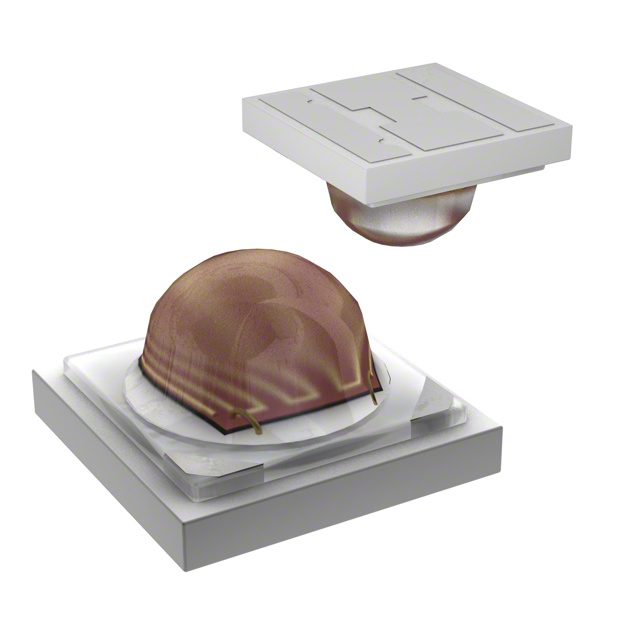

LED SHWO AMBER 589NM SMD

Search across all available documentation for this part.

Optoelectronics

Active

LED SHWO AMBER 589NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSW-F51Y1-0LPNM-AA3A5

Color	Amber
Current - Max [Max]	400 mA
Current - Test	350 mA
Height - Seated (Max)	2.23 mm
Height - Seated (Max) [Max]	0.088 in
Lumens/Watt @ Current - Test	68 lm/W
Luminous Flux @ Current/Temperature	56 lm
Luminous Flux @ Current/Temperature [Max]	60 lm
Luminous Flux @ Current/Temperature [Min]	52 lm
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Size / Dimension [x]	0.138 in
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.138 in
Size / Dimension [y]	3.5 mm
Supplier Device Package	SMD
Temperature - Test	25 °C
Thermal Resistance of Package	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.35 V
Wavelength	589 nm
Wavelength [Max]	593 nm
Wavelength [Min]	585 nm

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Package / Case	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Supplier Device Package	Wavelength	Wavelength [Max]	Wavelength [Min]	Voltage - Forward (Vf) (Typ)	Height - Seated (Max)	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Mounting Type	Current - Test	Color	Temperature - Test
Everlight Electronics Co Ltd ELSW-F51R1-0LPNM-AR5R6	12 °C/W	68 lm/W	1414 (3535 Metric)	400 mA	0.138 in	0.138 in	3.5 mm	3.5 mm	120 °	SMD	625 nm	630 nm	620 nm	2.35 V	2.23 mm	0.088 in	56 lm	60 lm	52 lm	Surface Mount	350 mA	Red	25 °C
Everlight Electronics Co Ltd ELSW-F51Y1-0LPNM-AA3A5	12 °C/W	68 lm/W	1414 (3535 Metric)	400 mA	0.138 in	0.138 in	3.5 mm	3.5 mm	120 °	SMD	589 nm	593 nm	585 nm	2.35 V	2.23 mm	0.088 in	56 lm	60 lm	52 lm	Surface Mount	350 mA	Amber	25 °C
Everlight Electronics Co Ltd ELSW-F51O1-0LPNM-AR3R4	12 °C/W	68 lm/W	1414 (3535 Metric)	400 mA	0.138 in	0.138 in	3.5 mm	3.5 mm	120 °	SMD	615 nm	620 nm	610 nm	2.35 V	2.23 mm	0.088 in	56 lm	60 lm	52 lm	Surface Mount	350 mA		25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color SHWO Amber 589nm (585nm ~ 593nm) 1414 (3535 Metric)
