Technical Specifications
Parameters and characteristics for this part
| Specification | PM53-BCW12.5 |
|---|---|
| Current | 30mA Green, 30mA Red |
| Lamp Color | Red, Green |
| Lens Color | White |
| Lens Size | 5 mm |
| Lens Size | T-1 3/4 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 35 mcd |
| Millicandela Rating [custom] | 35 mcd |
| Panel Cutout Dimensions [x] | 6.35 mm |
| Panel Cutout Dimensions [x] | 0.25 in |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12.5" (317.50mm) |
| Type | LED |
| Viewing Angle | 40 ° |
| Voltage | 2.1 V |
| Voltage | 2 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 2.15 | |
| N/A | 0 | $ 2.40 | ||
Description
General part information

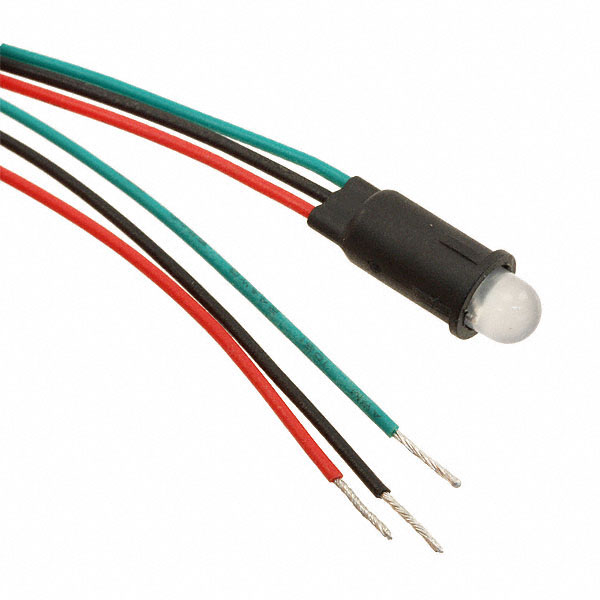

PM53-BCW12.5 Series
LED Panel Indicator Green, Red Diffused 40° 2.1V Green, 2V Red 30mA Green, 30mA Red Wire Leads - 12.5" (317.50mm)
