Fans, Blowers, Thermal Management

AER38-38-15CB/A01

Active

CTS Thermal Management Products

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER38-38-15CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	14.6 mm
Fin Height [custom]	0.575 in
Length [x]	1.461 in
Length [x]	37.1 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	LGA, CPU, ASIC, BGA
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	2.72 °C/W
Thermal Resistance @ Natural	9.95 °C/W
Type	Top Mount
Width [x]	37.1 mm
Width [x]	1.461 in

AER38 Series

Part	Shelf Life	Attachment Method	Package Cooled	Thermal Resistance @ Forced Air Flow	Shape	Material	Length [x]	Length [x]	Type	Fin Height	Fin Height	Thermal Resistance @ Natural	Material Finish	Width [x]	Width [x]	Fin Height [custom]	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products AER38-38-18CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	2.52 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount	0.693 in	17.6 mm	9.45 °C/W	Black Anodized	37.1 mm	1.461 in
CTS Thermal Management Products AER38-38-15CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	2.72 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount		14.6 mm	9.95 °C/W	Black Anodized	37.1 mm	1.461 in	0.575 in
CTS Thermal Management Products AER38-38-21CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	2.32 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount	0.811 in	20.6 mm	9.15 °C/W	Black Anodized	37.1 mm	1.461 in
CTS Thermal Management Products AER38-38-28CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	1.92 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount			8.25 °C/W	Black Anodized	37.1 mm	1.461 in		27.6 mm	1.087 in
CTS Thermal Management Products AER38-38-33CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	1.72 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount	1.283 in	32.6 mm	7.55 °C/W	Black Anodized	37.1 mm	1.461 in
CTS Thermal Management Products AER38-38-12CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	3.02 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount			10.45 °C/W	Black Anodized	37.1 mm	1.461 in	0.457 in			11.6 mm
CTS Thermal Management Products AER38-38-23CB/A01	24 Months	Thermal Tape Adhesive (Included)	ASIC BGA CPU LGA	2.12 °C/W	Fins Square	Aluminum Alloy	1.461 in	37.1 mm	Top Mount			8.85 °C/W	Black Anodized	37.1 mm	1.461 in					22.61 mm	0.89 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 5.86
	Tray	300	$ 5.86

Description

General part information

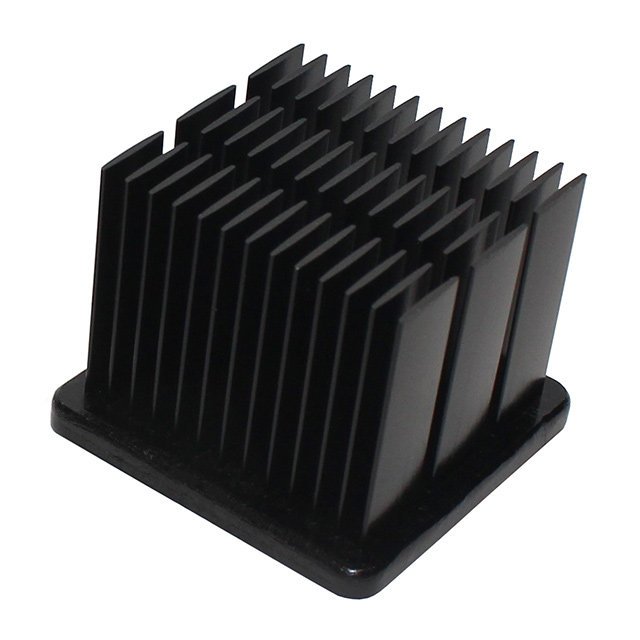

AER38 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet
