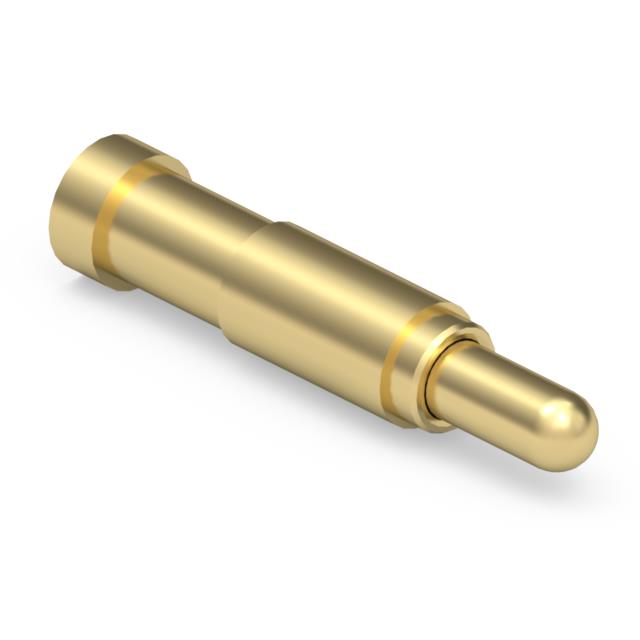

Specification	7966-0-15-20-77-14-11-0

Contact Finish	Gold
Contact Finish Thickness	20 µin
Contact Finish Thickness	0.51 µm
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	5.2 A
Material Flammability Rating	UL94 V-0
Mating Cycles	1000000
Minimum Working Height [z]	0.249 in
Minimum Working Height [z]	6.32 mm
Mounting Type	Surface Mount
Operating Force - Mid Compression	60 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Pad Layout Dimension	0.072 in
Pad Layout Dimension	1.83 mm
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm
Recommended Working Height	0.294 in
Recommended Working Height	7.47 mm

7966-0 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Recommended Working Height	Recommended Working Height	Mating Cycles	Contact Type	Contact Material	Current Rating (Amps)	Mounting Type	Plunger Size [diameter]	Plunger Size [diameter]	Contact Finish	Pad Layout Dimension	Pad Layout Dimension	Operating Force - Mid Compression	Contact Finish Thickness	Contact Finish Thickness	Minimum Working Height [z]	Minimum Working Height [z]
Mill-Max Manufacturing Corp. 7966-0-15-20-77-14-11-0	-55 C	125 °C	UL94 V-0	0.294 in	7.47 mm	1000000	Sleeve & Plunger (Pogo Pins)	Brass Alloy	5.2 A	Surface Mount	0.042 in	1.07 mm	Gold	0.072 in	1.83 mm	60 gf	20 µin	0.51 µm	0.249 in	6.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Spring Surface Mount
