Specification	SNP42NGHS0C2

Color	Black
Features	Heat Stabilized, Impact Resistant
Length [Max] [x]	2.325 "
Length [Max] [x]	59.06 mm
Length [Min] [x]	35.13 mm
Length [Min] [x]	1.383 "
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.75 mm
Material Thickness	0.069 "
Opening Size [Max]	52.17 mm
Opening Size [Max]	2.054 in
Opening Size [Min]	1.768 in
Opening Size [Min]	44.91 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	9.09 mm
Width	0.358 in

SNP42N Series

Part	Length [Max] [x]	Length [Max] [x]	Length [Min] [x]	Length [Min] [x]	Opening Size [Min]	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Material Flammability Rating	Material Thickness	Material Thickness	Color	Type	Width	Width	Type Attributes	Features	Material	Length [Max]	Length [Min]	Length [Min]	Length [Max]

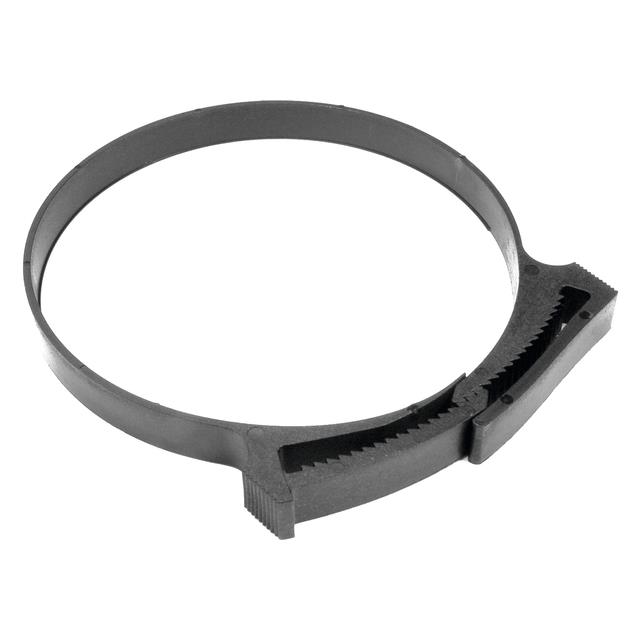

HELLERMANNTYTON SNP42NGHS0C2	2.325 "	59.06 mm	35.13 mm	1.383 "	1.768 in	44.91 mm	52.17 mm	2.054 in	UL94 HB	1.75 mm	0.069 "	Black	Clamp Hose	9.09 mm	0.358 in	Push-Fit	Heat Stabilized Impact Resistant	Polyamide (PA66) Nylon 6/6 Glass Filled

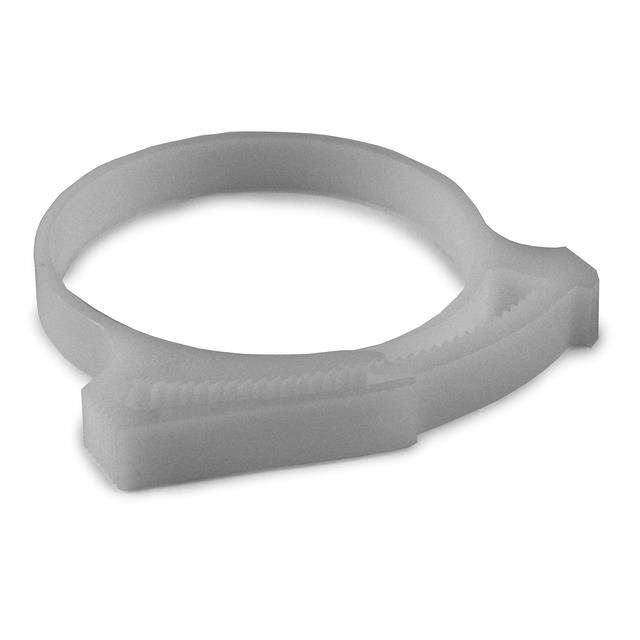

HELLERMANNTYTON SNP42N10K2					1.73 "	43.94 mm	51.05 mm	2.01 "	UL94 HB	1.73 mm	0.068 in	White	Clamp Hose	9 mm	0.354 in	Push-Fit		Polyacetal (POM)	2.302 in	34.77 mm	1.369 in	58.47 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
