Connectors, Interconnects

GS21-111-20-00-0000-00

Active

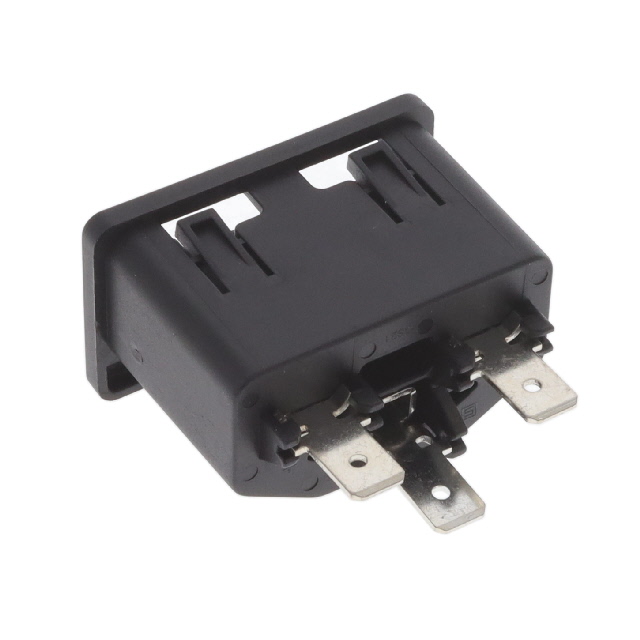

GS21 SOCKET-OUTLET FOR 400 VDC S

Search across all available documentation for this part.

Connectors, Interconnects

Active

GS21 SOCKET-OUTLET FOR 400 VDC S

Technical Specifications

Parameters and characteristics for this part

Specification	GS21-111-20-00-0000-00

Approval Agency	VDE, UL
Connector Type	Receptacle, Female Sockets
Ingress Protection	IP20
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	22.6 mm
Panel Cutout Dimensions [y]	39.6 mm
Panel Thickness	0.079 in
Panel Thickness	2 mm
Termination	6.3 mm
Termination	Quick Connect
Termination	0.25 "

Part	Panel Thickness	Panel Thickness	Termination	Connector Type	Mounting Type	Material Flammability Rating	Approval Agency	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination
SCHURTER Inc. GS21-333-15-00-0000-00	1.5 mm	0.059 in	Solder	Receptacle Female Sockets	Panel Mount Snap-In	UL94 V-0	UL VDE	IP20	39.6 mm	22.6 mm
SCHURTER Inc. GS21-111-20-00-0000-00	2 mm	0.079 in	Quick Connect	Receptacle Female Sockets	Panel Mount Snap-In	UL94 V-0	UL VDE	IP20	39.6 mm	22.6 mm	6.3 mm	0.25 "
SCHURTER Inc. GS21-333-20-00-0000-00	2 mm	0.079 in	Solder	Receptacle Female Sockets	Panel Mount Snap-In	UL94 V-0	UL VDE	IP20	39.6 mm	22.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 3.28

General part information

Power Connector Receptacle, Female Sockets Panel Mount, Snap-In
