Technical Specifications
Parameters and characteristics for this part
| Specification | TLP3407SR(TP,E |
|---|---|
| Load Current | 1000 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 0.3 Ohms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 C |
| Output Type | DC, AC |
| Package / Case | 4-LDFN, 4-SMD (0.079", 2.00mm) |

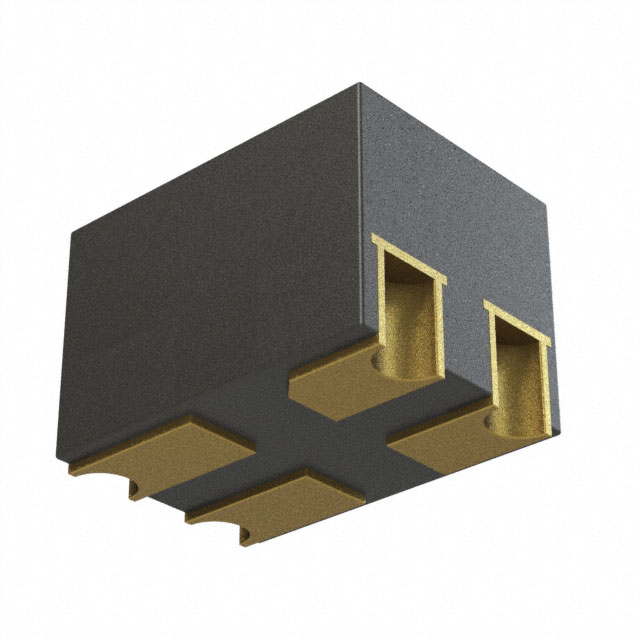

| Supplier Device Package | S-VSON4T |
| Supplier Device Package [x] | 2 |
| Supplier Device Package [y] | 1.45 |
| Termination Style | SMD (SMT) Tab |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.12 | |
| 10 | $ 4.30 | |||
| 100 | $ 3.36 | |||
| 500 | $ 2.99 | |||
| 1000 | $ 2.88 | |||
| Digi-Reel® | 1 | $ 6.12 | ||
| 10 | $ 4.30 | |||
| 100 | $ 3.36 | |||
| 500 | $ 2.99 | |||
| 1000 | $ 2.88 | |||
| N/A | 19 | $ 6.11 | ||
| Tape & Reel (TR) | 2500 | $ 2.76 | ||
Description
General part information

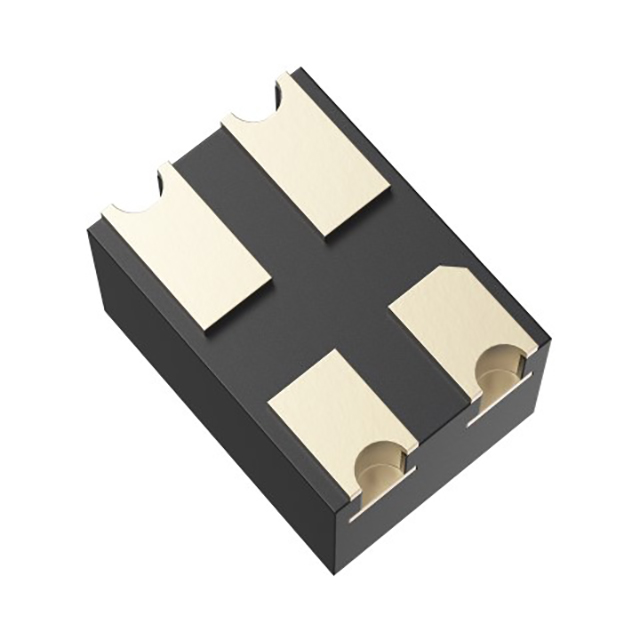

TLP340 Series
Solid State SPST-NO (1 Form A) 4-LDFN
