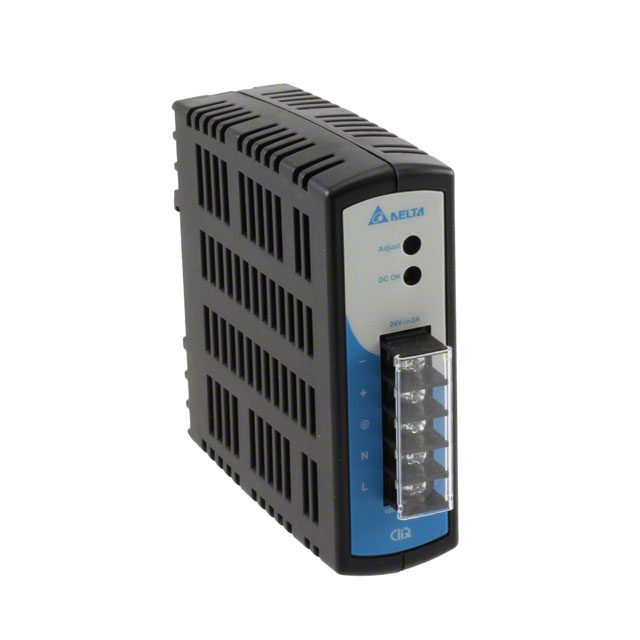

Specification	DRP-24V48W1AZ

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	SIQ, CE, EAC, CSA, UL, CB Scheme, EN
Current - Output (Max) [Max]	2 A
Efficiency	85 %
Features	Load Sharing, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	48 W
Size / Dimension [x]	3.96 in
Size / Dimension [x]	100.6 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	3.94 in
Size / Dimension [z]	100 mm
Standard Number	61000-6-2, 55032, 61000-3-2, 107.1-01, 50581, 61000-3-3, 55011, 55024, 508, 60950-1
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

DRP-24 Series

Part	Input Type	Voltage - Isolation	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Standard Number	Approval Agency	Features	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Number of Outputs
Delta Electronics DRP-24V48W1AZ	AC	4000 V	ITE (Commercial)	85 %	32 mm	3.96 in	1.26 in	100.6 mm	3.94 in	100 mm	264 VAC	85 VAC	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2	CB Scheme CE CSA EAC EN SIQ UL	Adjustable Output Load Sharing Universal Input	2 A	70 °C	-20 °C	24 V	48 W	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 31.03
