Optoelectronics

6773332323F

Active

DIALIGHT

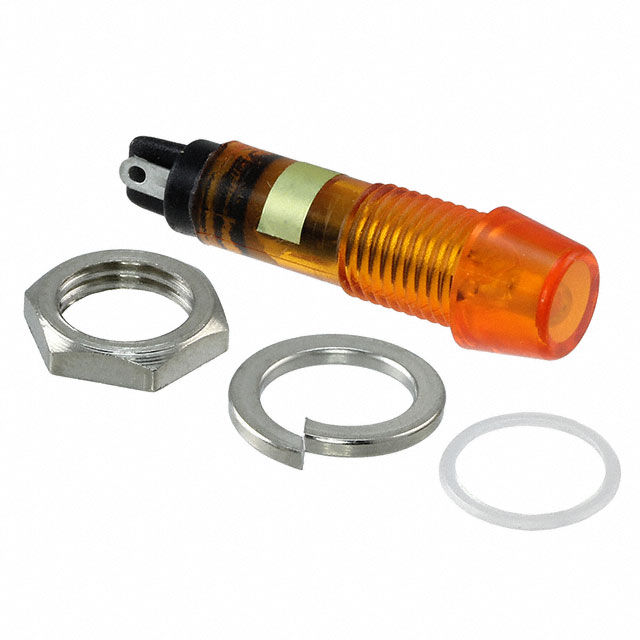

7MM HO/O PMI-6VDC W/O-RING

Search across all available documentation for this part.

Optoelectronics

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6773332323F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Orange
Millicandela Rating	1280 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	6 V

Part	Millicandela Rating	Current	Panel Cutout Shape	Ingress Protection	Voltage	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Termination Style	Ratings	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Viewing Angle
DIALIGHT 6773332323F	1280 mcd	30 mA	Round	IP66 NEMA 4X	6 V	Orange	7.11 mm	0.28 "	Solder Lug	DC	LED
DIALIGHT 6773332333F	3500 mcd	30 mA	Round	IP66 NEMA 4X	12 V	Orange			Solder Lug	DC	LED	7.2 mm	0.28 in	605 nm	25 °
DIALIGHT 6773332343F	3500 mcd	30 mA	Round	IP66 NEMA 4X	24 V	Orange			Solder Lug	DC	LED	7.2 mm	0.28 in	605 nm	25 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Orange 6V 30mA Solder Lug
