Technical Specifications
Parameters and characteristics for this part
| Specification | 33_TNC-N-50-1/133_UE |
|---|---|
| Adapter Series | N to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, N Jack |
| Convert To (Adapter End) | TNC Plug, Male Pin |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.02 | |
| 10 | $ 60.58 | |||
| 25 | $ 58.25 | |||
| 50 | $ 56.31 | |||
| 100 | $ 53.20 | |||
| N/A | 0 | $ 69.49 | ||
Description
General part information
33_TNC-N Series

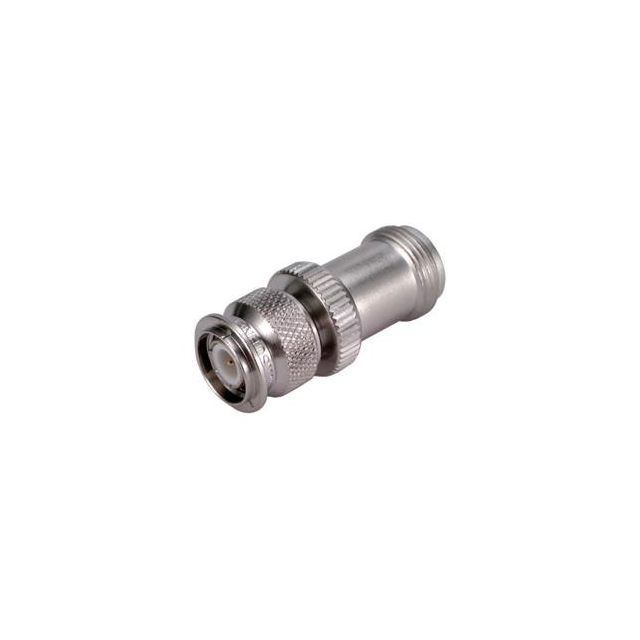

Adapter Coaxial Connector N Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
