Power Supplies - External/Internal (Off-Board)
LPS-75-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPS-75-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, TUV, CB, cURus |
| Current - Output 1 | 1.56 A |
| Efficiency | 83 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [x] | 8.74 in |
| Size / Dimension [y] | 2.17 " |
| Size / Dimension [y] | 55 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 127 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.57 | |
| 5 | $ 19.38 | |||
| 10 | $ 18.89 | |||
| 25 | $ 18.26 | |||
| N/A | 3 | $ 18.40 | ||
Description
General part information

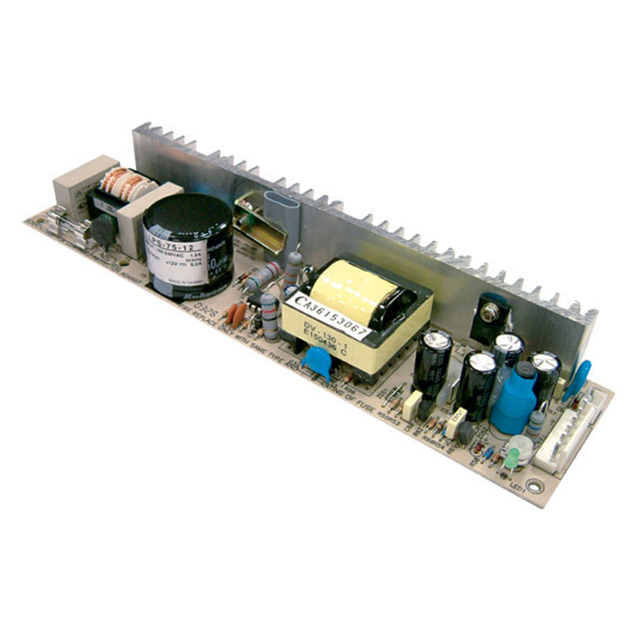

LPS-75 Series
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input
