Cables, Wires - Management

1116141

Active

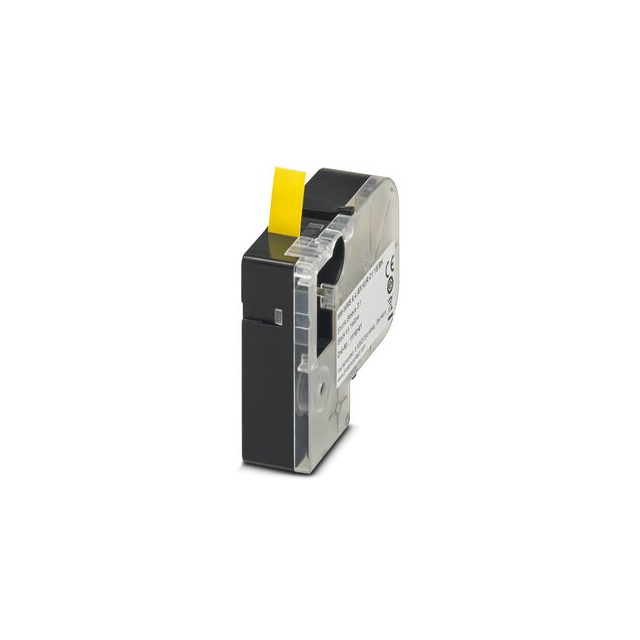

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Search across all available documentation for this part.

Cables, Wires - Management

Active

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Label Size [y]	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Label Size [y]	Label Size [x]	Label Type	Label Size [Max]	Label Size [Min]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [y]	Label Size [Min]	Label Size [x]
Phoenix Contact 1116142	-55 C	125 °C	Polyolefin (PO)	0.04 in	16.8 mm	0.13 in 0.37 in	3.2 mm 9.5 mm	1 mm	0.66 "	Heat Shrinkable
Phoenix Contact 1116141	-55 C	125 °C	Polyolefin (PO)	0.04 in	11.2 mm			1 mm	0.44 in	Heat Shrinkable	0.25 in	0.08 "	2.1 mm	6.4 mm
Phoenix Contact 1116140	-55 C	125 °C	Polyolefin (PO)		0.33 in			0.04 "		Heat Shrinkable			0.06 "	0.19 in	4.8 mm	1 mm	1.6 mm	8.4 mm
Phoenix Contact 1116139	-55 C	125 °C	Polyolefin (PO)		0.24 in 6.1 mm			0.04 " 1 mm		Heat Shrinkable			0.04 " 1 mm	0.13 " 3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, Yellow Heat Shrinkable Label 0.44" x 0.04" (11.2mm x 1.0mm); Cable O.D. 0.08" ~ 0.25" (2.1mm ~ 6.4mm)
