Connectors, Interconnects

PD3FRA2

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P TIN SLDR

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P TIN SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	PD3FRA2

Applications	Audio
Color	Black
Connector Type	Female Sockets, Plug
Contact Material	Brass
Fastening Type	Push-Pull
Features	Ground
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	XLR
Termination	Solder

Part	Connector Type	Color	Shell Size - Insert	Termination	Shell Material	Fastening Type	Features	Contact Material	Mounting Type	Applications	Insert Material	Primary Material	Mounting Feature	Material Flammability Rating

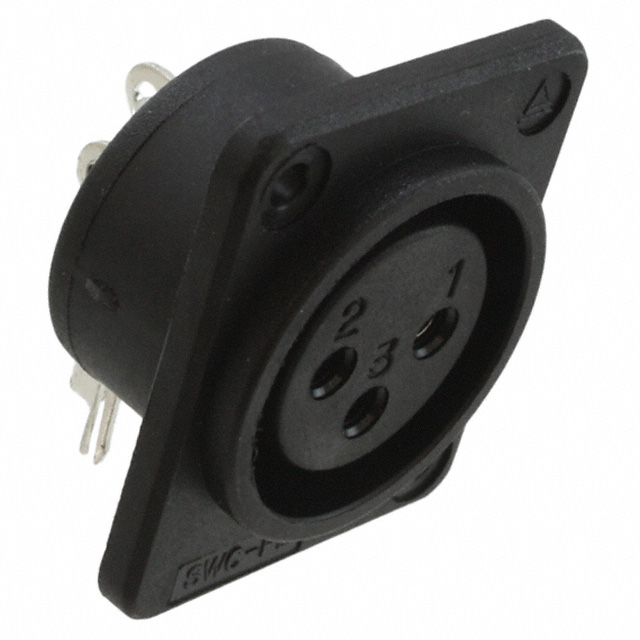

Switchcraft Inc. PD3FRA2	Female Sockets Plug	Black	XLR	Solder	Polyamide (PA66) Nylon 6/6	Push-Pull	Ground	Brass	Panel Mount Right Angle Through Hole	Audio	Polyamide (PA66) Nylon 6/6	Plastic	Flange	UL94 V-0

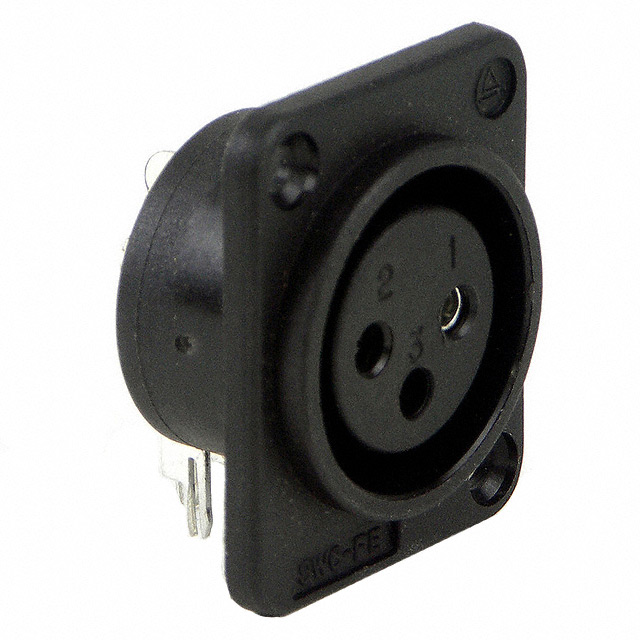

Switchcraft Inc. PD3FRA1	Female Sockets Plug	Black	XLR	Solder	Polyamide (PA66) Nylon 6/6	Push-Pull	Ground	Brass	Panel Mount Right Angle Through Hole	Audio	Polyamide (PA66) Nylon 6/6	Plastic	Flange	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Female Sockets Solder
