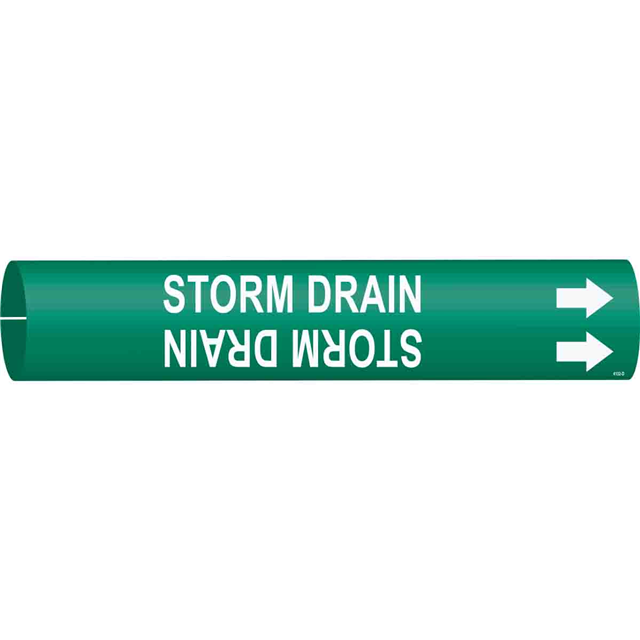

Labels, Signs, Barriers, Identification

4132-D

Active

378-06-014132-D STORM DRAIN/GRN/

Search across all available documentation for this part.

Labels, Signs, Barriers, Identification

Active

378-06-014132-D STORM DRAIN/GRN/

Technical Specifications

Parameters and characteristics for this part

Specification	4132-D

Application Specifics	Notice
Applications	Pipe
Arrangement	Text Only
Color - Background	Green
Color - Legend	White
Features	Chemical Resistant, Abrasion Resistant
Language	69000 A, 63000 A
Legend (Symbol Only)	No Symbol
Legend (Text)	Storm Drain
Length	2.813 in
Length	71.44 mm
Location	Outdoor
Material - Body	Plastic
Mounting Type	Snap On
Outside Pipe Diameter (Min) [Min] [diameter]	6 in
Outside Pipe Diameter (Min) [Min] [diameter]	152.4 mm
Print Type	Pre-Printed
Shape	Square
Width [x]	71.44 mm
Width [x]	2.813 in

Part	Color	Material	Label Size [x]	Label Size [x]	Label Size [y]	Label Size [y]	Label Type	Label Size [y]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Width [x]	Width [x]	Applications	Print Type	Language	Legend (Text)	Legend (Symbol Only)	Arrangement	Material - Body	Location	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Mounting Type	Features	Application Specifics	Color - Legend	Length	Length	Color - Background	Shape
BRADY 4132-H	Green Background White Legend	Plastic	32 "	812.8 mm	10 "	254 mm	Storm Drain

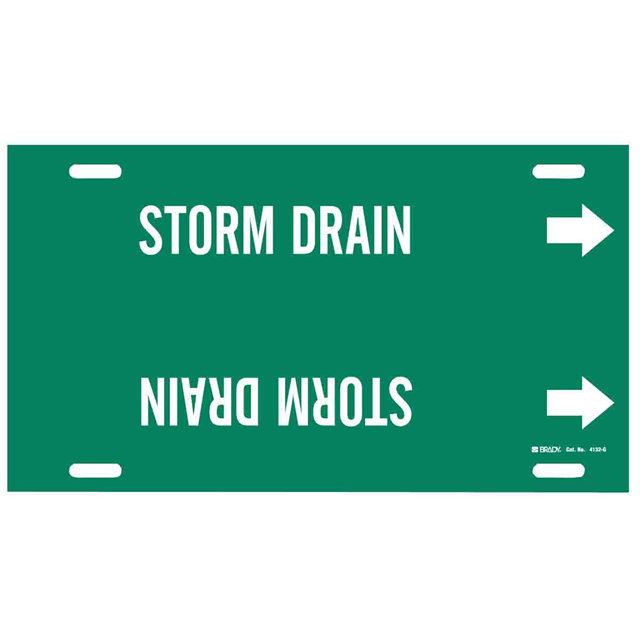

BRADY 4132-G	Green Background White Legend	Plastic	24 in	609.6 mm	10 "		Storm Drain	254 mm
BRADY 4132-F	Green Background White Legend	Plastic					Storm Drain		8 in	406.4 mm	16 in	203.2 mm
BRADY 4132-B	Green Background White Legend	Plastic	9 "	228.6 mm	0.88 in	22.2 mm	Storm Drain
BRADY 4132-C	Green Background White Legend	Plastic	13 in	330.2 mm	50.8 mm	2 in	Storm Drain
BRADY 4132-D													71.44 mm	2.813 in	Pipe	Pre-Printed	63000 A 69000 A	Storm Drain	No Symbol	Text Only	Plastic	Outdoor	6 in	152.4 mm	Snap On	Abrasion Resistant Chemical Resistant	Notice	White	2.813 in	71.44 mm	Green	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

378-06-014132-D STORM DRAIN/GRN/

Technical documentation and resources
