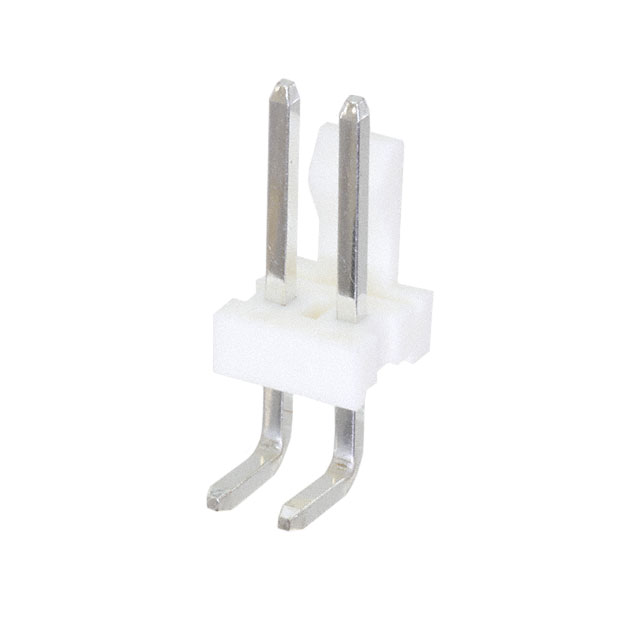

Specification	LHD-02-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	3.96 mm
Contact Length - Post	0.156 "
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A, 7 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height [z]	0.13 in
Insulation Height [z]	3.3 mm
Insulation Material	Glass Filled, Nylon 6/6, Polyamide (PA66)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	3.96 mm
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

LHD-02 Series

Part	Contact Length - Post	Contact Length - Post	Mounting Type	Fastening Type	Insulation Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Positions	Number of Rows	Connector Type	Number of Positions Loaded	Contact Shape	Termination	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Material	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

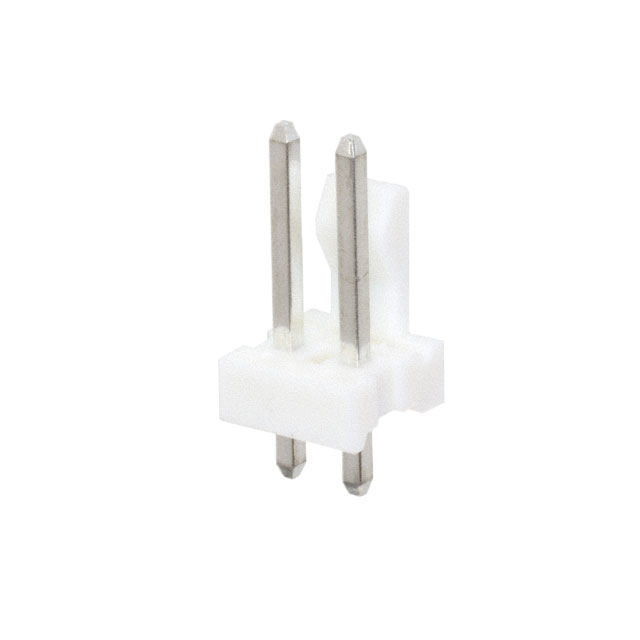

Adam Tech LHD-02-TS	0.142 in	3.6 mm	Through Hole	Friction Lock	White	Board to Cable/Wire	85 °C	-40 C	Nylon 6/6 Polyamide (PA66)	2	1	Header	All	Square	Solder	Male Pin	Tin	3.96 mm	0.156 in	7 A	11.4 mm	0.449 in	Brass	UL94 V-2	Shrouded - 1 Wall	0.125 in	3.18 mm
Adam Tech LHD-02-TRA		3.96 mm	Through Hole	Friction Lock	Natural	Board to Cable/Wire	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	2	1	Header	All	Square	Solder	Male Pin	Tin	3.96 mm	0.156 in	5 A 7 A	11.43 mm	0.45 in	Brass	UL94 V-0	Shrouded - 1 Wall			0.156 "	0.13 in	3.3 mm
