Power Supplies - Board Mount

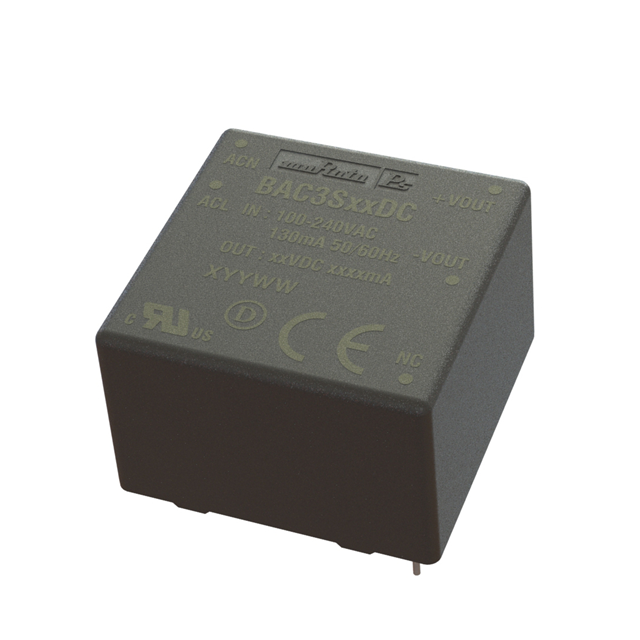

BAC3S24DC
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 24V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC3S24DC |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 125 mA |
| Efficiency | 81 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.64 in |
| Size / Dimension [z] | 16.3 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.00 | |
| 5 | $ 10.95 | |||
| 10 | $ 10.87 | |||
| 25 | $ 10.75 | |||
| 50 | $ 10.48 | |||
| 100 | $ 9.96 | |||
| 250 | $ 9.32 | |||
| 500 | $ 8.69 | |||
| 1000 | $ 8.14 | |||
Description
General part information
BAC3S Series
Enclosed AC DC Converters 1 Output 24V 125mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
