Specification	9GX3612P3K001

Air Flow	0.683 m³/min
Air Flow	24.4 CFM
Approval Agency	TUV, CSA, UL
Bearing Type	Ball
Current Rating (Amps)	1.3 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control, Locked Rotor Protection
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15.6 W
RPM	24000 RPM
Size / Dimension [x]	36 mm
Size / Dimension [y]	36 mm
Static Pressure	3.365 in H2O
Static Pressure	838.2 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	46.27 g
Weight	0.102 lb
Width [x]	28 mm

9GX3612 Series

Part	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	RPM	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Voltage - Rated	Features	Bearing Type	Power (Watts)	Fan Type	Width [x]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Weight	Weight	Air Flow	Air Flow
Sanyo Denki America Inc. 9GX3612P3K001	Varies Based on Temperature	1.3 A	10.8 VDC	13.2 VDC	Plastic	Plastic	24000 RPM	36 mm	36 mm	3.365 in H2O	838.2 Pa	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	15.6 W	Tubeaxial	28 mm	CSA TUV UL	-10 °C	60 °C	4 Wire Leads	46.27 g	0.102 lb	0.683 m³/min	24.4 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

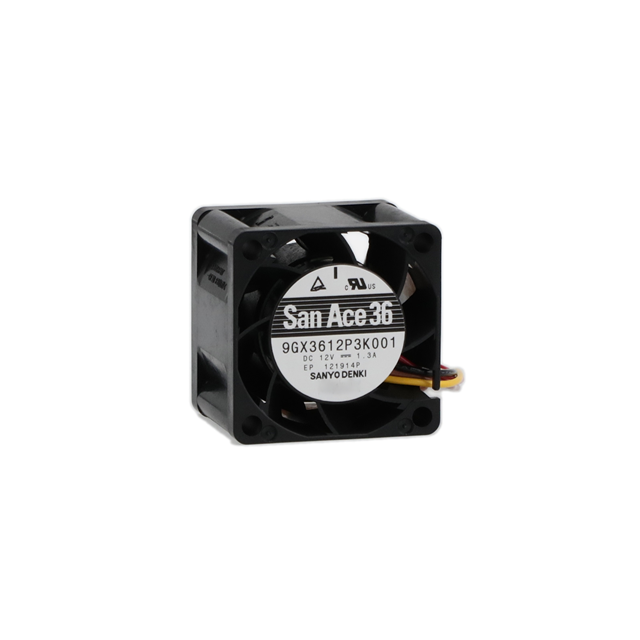

Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 24.4 CFM (0.683m³/min) 4 Wire Leads
