Fans, Blowers, Thermal Management
7-361-BA
ActiveCTS Thermal Management Products

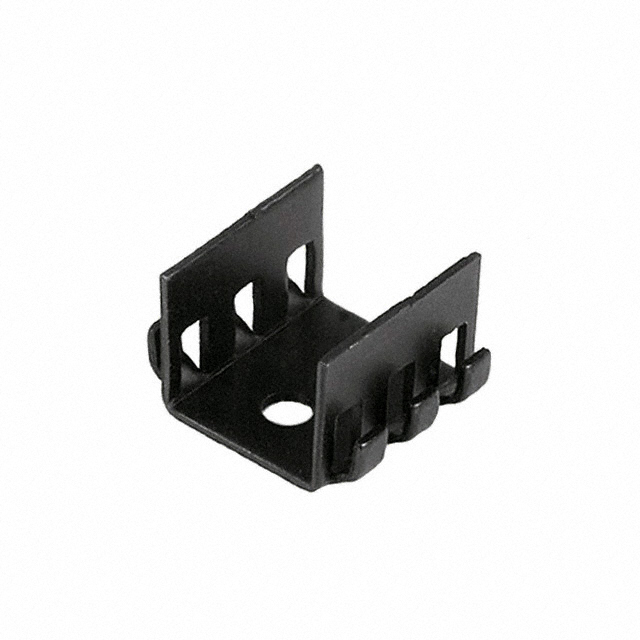

HEATSINK VERT HORZ TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-361-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.5 in |
| Length | 0.71 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 1.5 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 30 °C/W |
| Type | Board Level |
| Width | 0.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.00 | 1m+ |
| 10 | $ 0.95 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.69 | |||
| 5000 | $ 0.67 | |||
| N/A | 0 | $ 1.35 | 1m+ | |
CAD
3D models and CAD resources for this part
Description
General part information
7-361 Series
Heat Sink TO-220 Aluminum 1.5W @ 40°C Board Level
