Optoelectronics

6773335333F

Active

DIALIGHT

7MM HO/O PMI-12VDC W/O-RING

Search across all available documentation for this part.

Optoelectronics

Active

DIALIGHT

7MM HO/O PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6773335333F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Orange
Millicandela Rating	1280 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Type	LED
Voltage	12 V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Wavelength - Peak	Current	Voltage	Millicandela Rating	Type	Viewing Angle	Lamp Color	Panel Cutout Shape	Ingress Protection	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6773335343F	7.2 mm	0.28 in	DC	605 nm	30 mA	24 V	3500 mcd	LED	25 °	Orange	Round	IP66 NEMA 4X
DIALIGHT 6773335323F	7.2 mm	0.28 in	DC	605 nm	30 mA	6 V	3500 mcd	LED	25 °	Orange	Round	IP66 NEMA 4X
DIALIGHT 6773335333F			DC		30 mA	12 V	1280 mcd	LED		Orange	Round	IP66 NEMA 4X	7.11 mm	0.28 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

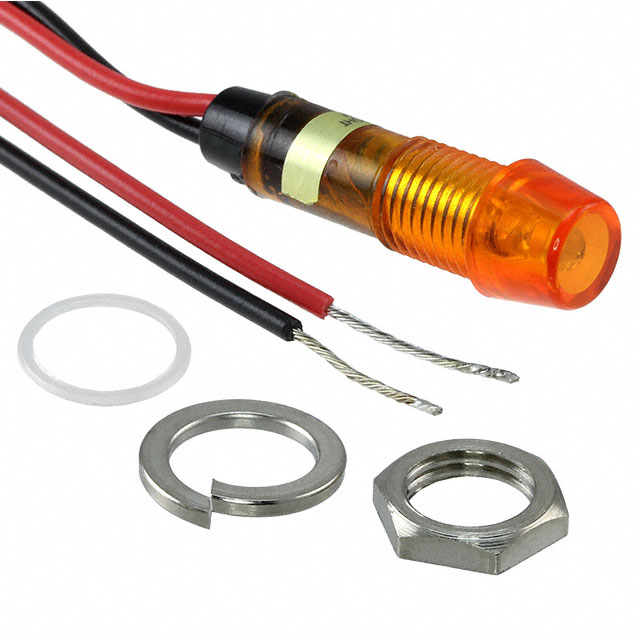

LED Panel Indicator Orange 12V 30mA Wire Leads - 6" (152.40mm)
