Specification	2243C SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.06 mm
Jacket (Insulation) Diameter [diameter]	0.357 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Slate
Length	152.4 m
Length	500 ft
Number of Conductors	6
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	18 AWG

2243C Series

Part	Shield Material	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Wire Gauge	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Shield Type	Conductor Material	Cable Type	Conductor Insulation	Length	Length
ALPHA WIRE 2243C SL005	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	0.94 mm	0.037 in	300 VDC	18 AWG	6	16	30 AWG	80 °C	-20 ░C	Drain Wire	100 ft	30.5 m	Slate	9.06 mm	0.357 in	Communication Control	Foil	Copper Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 2243C SL002	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	0.94 mm	0.037 in	300 VDC	18 AWG	6	16	30 AWG	80 °C	-20 ░C	Drain Wire			Slate	9.06 mm	0.357 in	Communication Control	Foil	Copper Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)	152.4 m	500 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

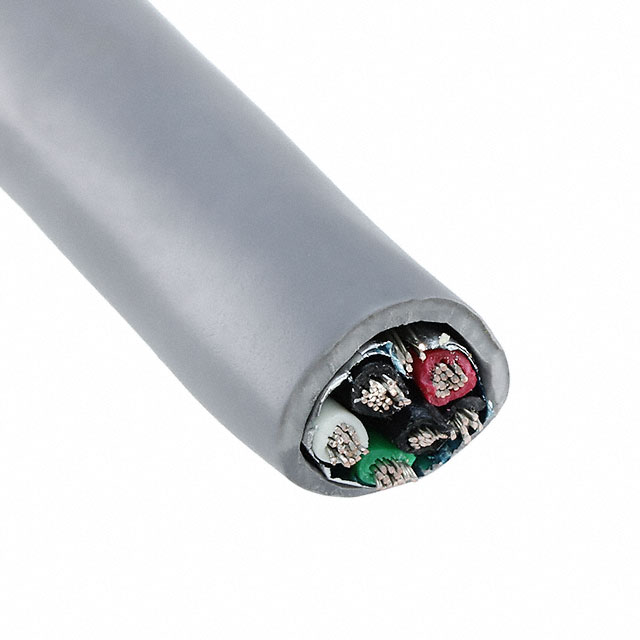

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG Foil 500.0' (152.4m)
