Connectors, Interconnects
15-002213
ActiveAmphenol CONEC

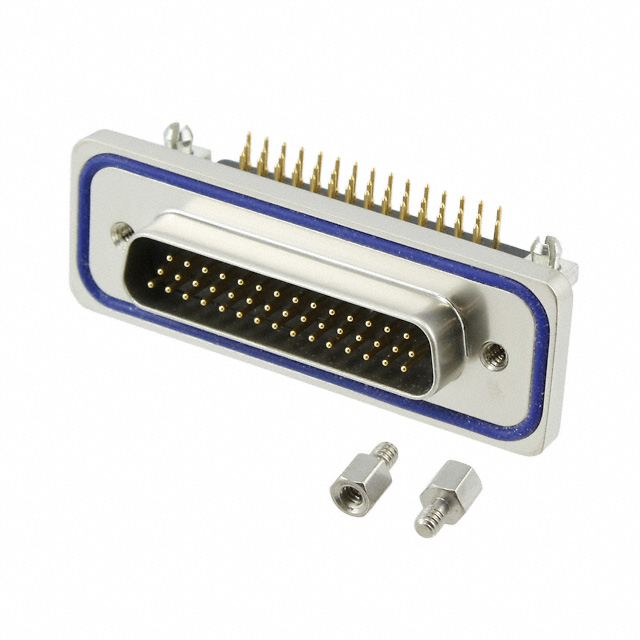

CONN D-SUB HD PLUG 44P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
15-002213
ActiveAmphenol CONEC
CONN D-SUB HD PLUG 44P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 15-002213 |
|---|---|
| Backset Spacing | 5.6 mm |
| Backset Spacing | 0.22 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Zinc Die Cast |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Solder |
| Voltage Rating | 60 VDC |
15-0022 Series
| Part | Color | Termination | Voltage Rating | Contact Type | Contact Finish | Number of Positions | Ingress Protection | Flange Feature | Number of Rows | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Style | Contact Material | Dielectric Material | Connector Type | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

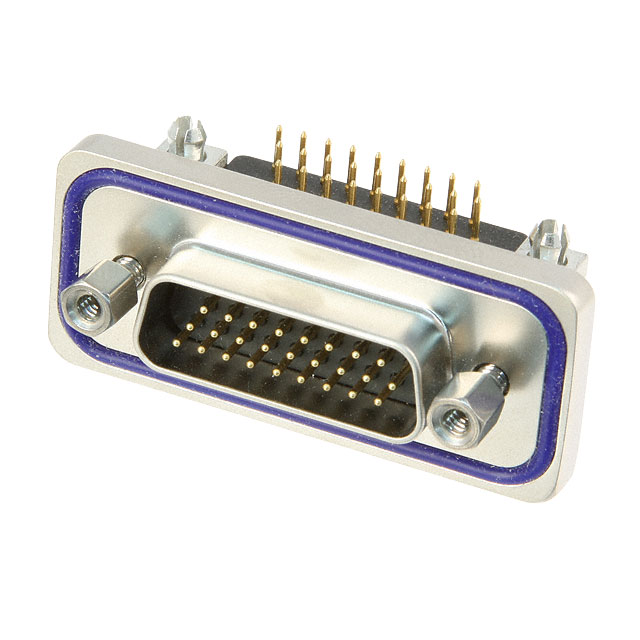

 Amphenol CONEC | Black | Solder | 60 VDC | Signal | Gold | 26 | IP67 - Dust Tight Waterproof | Female Screwlock (4-40) Mating Side | 3 | Board Edge Right Angle Through Hole | 2 | (DA A) High Density | UL94 V-0 | 3 A | 8 çin | 0.203 çm | Board Lock Mounting Brackets | D-Sub High Density | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Nickel Plated Zinc Die Cast | -25 °C | 105 ░C | 5.6 mm | 0.22 in | ||||
Amphenol CONEC | Black | Solder | 60 VDC | Signal | Gold | 62 | IP67 - Dust Tight Waterproof | Female Screwlock (4-40) Mating Side | 3 | Board Edge Right Angle Through Hole | 4 | UL94 V-0 | 3 A | 8 çin | 0.203 çm | Board Lock Mounting Brackets | D-Sub High Density | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Nickel Plated Zinc Die Cast | -25 °C | 105 ░C | 5.6 mm | 0.22 in | |||||

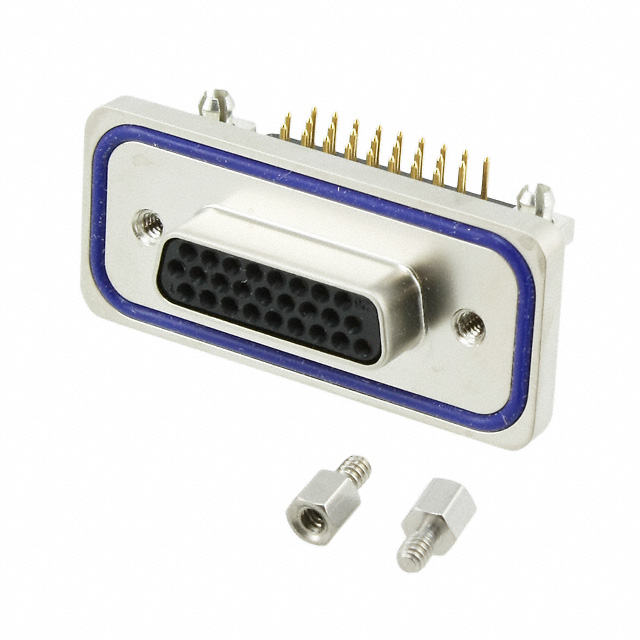

 Amphenol CONEC | Black | Solder | 60 VDC | Signal | Gold | 26 | IP67 - Dust Tight Waterproof | Female Screwlock (4-40) Mating Side | 3 | Board Edge Right Angle Through Hole | 2 | (DA A) High Density | UL94 V-0 | 3 A | 8 çin | 0.203 çm | Board Lock Mounting Brackets | D-Sub High Density | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle Female Sockets | Nickel Plated Zinc Die Cast | -25 °C | 105 ░C | 5.6 mm | 0.22 in | ||||
 Amphenol CONEC | Black | Solder | 60 VDC | Signal | Gold | 15 | IP67 - Dust Tight Waterproof | Female Screwlock (4-40) Mating Side | 3 | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | 8 çin | 0.203 çm | Board Lock Mounting Brackets | D-Sub High Density | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle Female Sockets | Nickel Plated Zinc Die Cast | -25 °C | 105 ░C | 5.6 mm | 0.22 in | DE E | 1 | High Density | |||
Amphenol CONEC | Black | Solder | 60 VDC | Signal | Gold | 44 | IP67 - Dust Tight Waterproof | Female Screwlock (4-40) Mating Side | 3 | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | 8 çin | 0.203 çm | Board Lock Mounting Brackets | D-Sub High Density | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Nickel Plated Zinc Die Cast | -25 °C | 105 ░C | 5.6 mm | 0.22 in | B DB | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 70.44 | |
| 10 | $ 54.67 | |||
| 25 | $ 49.68 | |||
| 50 | $ 46.31 | |||
| 100 | $ 43.26 | |||
| 250 | $ 39.67 | |||
Description
General part information
15-0022 Series
44 Position D-Sub, High Density Plug, Male Pins Connector
