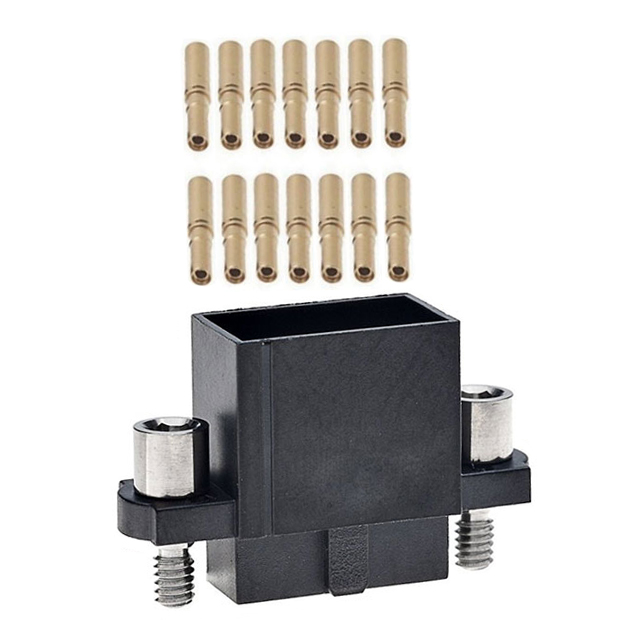

MFG_M80-4861442

Connectors, Interconnects

M80-4651405

Active

CONN RCPT 14POS CRIMP 22AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-001 +3

MFG_M80-4861442

Connectors, Interconnects

M80-4651405

Active

CONN RCPT 14POS CRIMP 22AWG GOLD

Deep-Dive with AI

DocumentsDatasheet M80-001 +3

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4651405

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews, Potting Wall, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.85
		10	$ 14.51
		25	$ 13.13
		50	$ 12.19
		100	$ 11.35
		250	$ 10.35
		500	$ 9.68
		1000	$ 9.07
	N/A	38	$ 14.90

Description

General part information

M80-465 Series

14 Position Rectangular Receptacle Connector Crimp Gold 22 AWG

Documents

Technical documentation and resources

Datasheet

M80-001

Related Document

M80-0110001

Related Document

M80, M83 Series Spec Sheet

M80-4651405 | Datasheet

M80-465 Series

Part	Color	Cable Termination	Connector Type	Mounting Type	Wire Gauge	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Pitch [x]	Pitch [x]	Features	Row Spacing	Row Spacing	Contact Type	Wire Type	Number of Positions [custom]
Harwin Inc. M80-4650605	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	6	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4651042	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	10	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4652005	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	20	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4655005	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	50	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4651805	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	18	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4654205	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	42	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4653405	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold		0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete	34
Harwin Inc. M80-4652605	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	26	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
Harwin Inc. M80-4651405	Black	Crimp	Receptacle	Free Hanging (In-Line)	22 AWG	Gold	14	0.3 Ám	11.8 Áin	2	0.079 in	2 mm	Jackscrews Polarizing Key Potting Wall	2 mm	0.079 in	Female Socket	Discrete
