Fans, Blowers, Thermal Management

9GV0912P1F031

Active

Sanyo Denki America Inc.

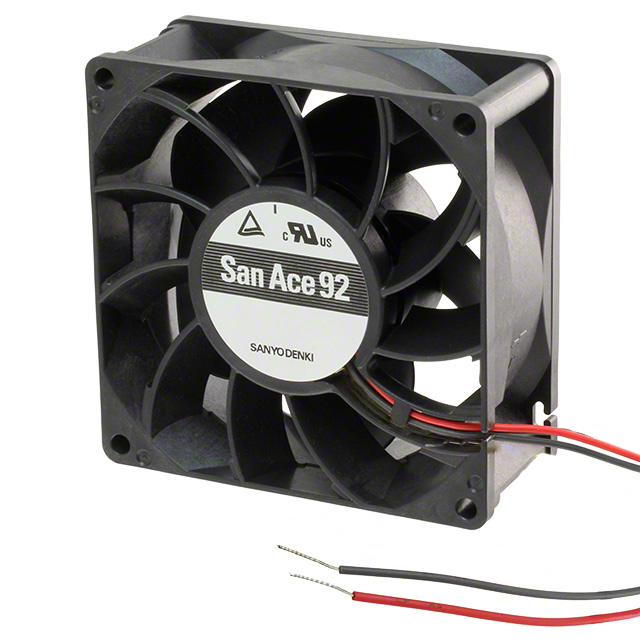

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

Fans, Blowers, Thermal Management

9GV0912P1F031

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV0912P1F031

Air Flow	146.6 CFM
Air Flow	4.1 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.9 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	7000 RPM
Static Pressure	1.05 in H2O
Static Pressure	261.5 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	38 mm

9GV0912 Series

Part	Noise	Material - Frame	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Width [y]	Approval Agency	Features	Termination	Material - Blade	Bearing Type	Current Rating (Amps)	Fan Type	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Power (Watts)	Operating Temperature [Max]	Air Flow
Sanyo Denki America Inc. 9GV0912P1F03	59 dB(A)	Plastic	12 VDC	1.05 in H2O	261.5 Pa	146.6 CFM	4.1 m³/min	7000 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball	1.9 A	Tubeaxial	0.553 lb	250.84 g	70 °C	70 °C	-10 °C	-10 °C	10.2 VDC	13.8 VDC	40000 Hrs
Sanyo Denki America Inc. 9GV0912P1H031	64 dB(A)	Plastic	12 VDC	1.55 in H2O	385 Pa	178 CFM	4.98 m³/min	8500 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball	3.5 A	Tubeaxial	0.553 lb	250.84 g		70 °C	-20 °C	-20 C	10.2 VDC	13.8 VDC	40000 Hrs	42 W	70 °C
Sanyo Denki America Inc. 9GV0912H102	64 dB(A)	Plastic	12 VDC	1.55 in H2O	385 Pa	178 CFM	4.98 m³/min	8500 RPM	38 mm	CSA TUV UL		2 Wire Leads	Plastic	Ball	3.5 A	Tubeaxial	0.553 lb	250.84 g		70 °C	-20 °C	-20 C	10.2 VDC	13.8 VDC	40000 Hrs	42 W	70 °C
Sanyo Denki America Inc. 9GV0912P1H03	64 dB(A)	Plastic	12 VDC	1.55 in H2O	385 Pa	178 CFM	4.98 m³/min	8500 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball	3.5 A	Tubeaxial	0.553 lb	250.84 g		70 °C	-20 °C	-20 C	10.2 VDC	13.8 VDC	40000 Hrs	42 W	70 °C
Sanyo Denki America Inc. 9GV0912P1G031	68 dB	Plastic	12 VDC	1.73 in H2O	430.9 Pa		5.29 mł/min	9000 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball		Tubeaxial	0.553 lb	250.84 g		70 °C	-20 °C	-20 C	10.8 VDC	13.2 VDC	40000 Hrs	49.2 W	70 °C	189 CFM
Sanyo Denki America Inc. 9GV0912P1G03	68 dB	Plastic	12 VDC	1.73 in H2O	430.9 Pa	189 CFM	5.29 mł/min	9000 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball		Tubeaxial	0.553 lb	250.84 g		70 °C	-20 °C	-20 C	10.8 VDC	13.2 VDC	40000 Hrs	49.2 W	70 °C
Sanyo Denki America Inc. 9GV0912P1F031	59 dB(A)	Plastic	12 VDC	1.05 in H2O	261.5 Pa	146.6 CFM	4.1 m³/min	7000 RPM	38 mm	CSA TUV UL	PWM Control Speed Sensor (Tach)	4 Wire Leads	Plastic	Ball	1.9 A	Tubeaxial	0.553 lb	250.84 g	70 °C	70 °C	-10 °C	-10 °C	10.2 VDC	13.8 VDC	40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	28	$ 29.00

Description

General part information

9GV0912 Series

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 146.6 CFM (4.10m³/min) 4 Wire Leads
