Connectors, Interconnects

R114082000W

Active

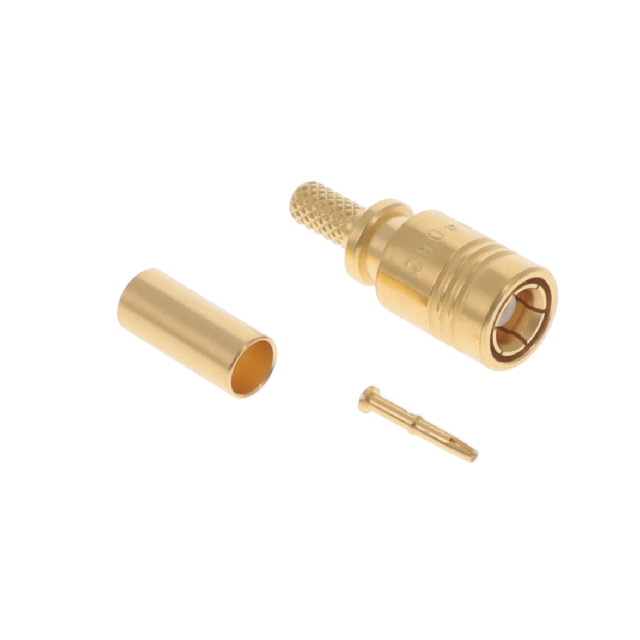

SMB / STRAIGHT PLUG CRIMP TYPE C

Search across all available documentation for this part.

Connectors, Interconnects

Active

SMB / STRAIGHT PLUG CRIMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R114082000W

Body Finish	Gold
Body Material	Brass
Cable Group	187, 179, RG-174, 316, 188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Finish	Dielectric Material	Center Contact Plating	Mating Cycles	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Material	Number of Ports	Contact Termination	Impedance	Connector Type	Frequency - Max [Max]	Housing Color	Shield Termination	Fastening Type	Connector Style	Mounting Type	Cable Group
Radiall USA, Inc. R114082000	Gold	Polytetrafluoroethylene (PTFE)	Gold	500	335 V	-65 ░C	165 °C	Brass	Beryllium Copper	1	Crimp	50 Ohms	Female Socket Plug	4 GHz	Gold	Crimp	Snap-On	SMB	Free Hanging (In-Line)	RG-174 RG-179 RG-316
Radiall USA, Inc. R114082000W	Gold	Polytetrafluoroethylene (PTFE)	Gold	500	335 V	-65 ░C	165 °C	Brass	Beryllium Copper	1	Crimp	50 Ohms	Female Socket Plug	4 GHz	Gold	Crimp	Snap-On	SMB	Free Hanging (In-Line)	179 187 188 316 RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
