Fans, Blowers, Thermal Management
9HV0848P1G001
ActiveSanyo Denki America Inc.

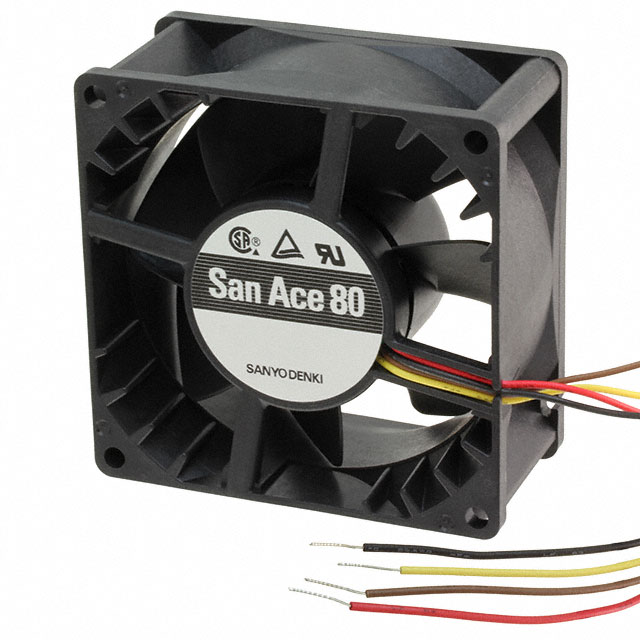

FAN AXIAL 80X38MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9HV0848P1G001 |
|---|---|
| Air Flow | 130.6 CFM |
| Air Flow | 3.66 m³/min |
| Approval Agency | TUV, CSA, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.85 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control, Locked Rotor Protection |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 40.8 W |
| RPM | 14900 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [z] | 80 mm |
| Static Pressure | 4.017 in H2O |
| Static Pressure | 1000.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 48 VDC |
| Voltage Range [Max] | 57 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight [custom] | 230.42 g |
| Weight [custom] | 0.508 lb |
| Width [y] | 38 mm |
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Fan Type | Air Flow | Air Flow | Bearing Type | Termination | Weight [custom] | Weight [custom] | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Voltage - Rated | Width [y] | Power (Watts) | Static Pressure | Static Pressure | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 0.85 A | Plastic | 36 VDC | 57 VDC | 40000 Hrs | Tubeaxial | 3.66 m³/min | 130.7 CFM | Ball | 2 Wire Leads | 230.42 g | 0.508 lb | 14900 RPM | 70 °C | -10 °C | 80 mm | 80 mm | CSA TUV UL | 48 VDC | 38 mm | 40.8 W | 4 in H2O | 996.3 Pa | |
 Sanyo Denki America Inc. | Plastic | 0.85 A | Plastic | 36 VDC | 57 VDC | 40000 Hrs | Tubeaxial | 3.66 m³/min | 130.7 CFM | Ball | 3 Wire Leads | 230.42 g | 0.508 lb | 14900 RPM | 70 °C | -10 °C | 80 mm | 80 mm | CSA TUV UL | 48 VDC | 38 mm | 40.8 W | 4 in H2O | 996.3 Pa | Locked Rotor Sensor |
Sanyo Denki America Inc. | Plastic | 0.85 A | Plastic | 36 VDC | 57 VDC | 40000 Hrs | Tubeaxial | 3.66 m³/min | 130.7 CFM | Ball | 3 Wire Leads | 230.42 g | 0.508 lb | 14900 RPM | 70 °C | -10 °C | 80 mm | 80 mm | CSA TUV UL | 48 VDC | 38 mm | 40.8 W | 4 in H2O | 996.3 Pa | Locked Rotor Protection Speed Sensor (Tach) |
Sanyo Denki America Inc. | Plastic | 0.85 A | Plastic | 36 VDC | 57 VDC | 40000 Hrs | Tubeaxial | 3.66 m³/min | 130.7 CFM | Ball | 4 Wire Leads | 230.42 g | 0.508 lb | 14900 RPM | 70 °C | -10 °C | 80 mm | 80 mm | CSA TUV UL | 48 VDC | 38 mm | 40.8 W | 4 in H2O | 996.3 Pa | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
Sanyo Denki America Inc. | Plastic | 0.85 A | Plastic | 36 VDC | 57 VDC | 40000 Hrs | Tubeaxial | 3.66 m³/min | 130.6 CFM | Ball | 4 Wire Leads | 230.42 g | 0.508 lb | 14900 RPM | 70 °C | -10 °C | 80 mm | 80 mm | CSA TUV UL | 48 VDC | 38 mm | 40.8 W | 4.017 in H2O | 1000.6 Pa | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.48 | |
| 10 | $ 39.66 | |||
| 25 | $ 39.22 | |||
| N/A | 266 | $ 61.84 | ||
Description
General part information
9HV0848 Series
Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 130.6 CFM (3.66m³/min) 4 Wire Leads
