Integrated Circuits (ICs)
NANO120SC2BN
NRNDNuvoton Technology Corporation
IC MCU 32BIT 32KB FLASH 64LQFP
Deep-Dive with AI
Search across all available documentation for this part.
Integrated Circuits (ICs)
NANO120SC2BN
NRNDNuvoton Technology Corporation
IC MCU 32BIT 32KB FLASH 64LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NANO120SC2BN |
|---|---|
| Connectivity | I2C, UART/USART, USB, SPI |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core, 32-Bit |
| Data Converters | A/D 7x12b, D/A 2x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 48 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -40 ¯C |
| Oscillator Type | Internal |

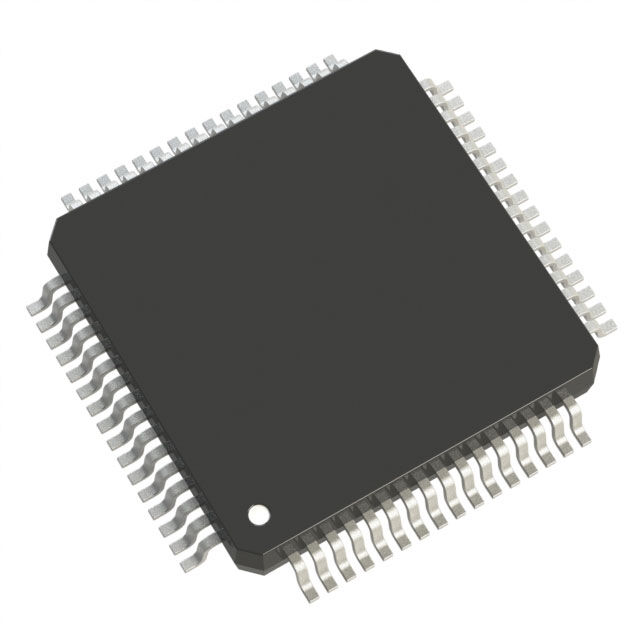

| Package / Case | 64-LQFP |
| Peripherals | POR, WDT, PWM, Brown-out Detect/Reset, DMA, I2S |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 8 K |
| Speed | 42 MHz |
| Supplier Device Package | 64-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 2.00 | |
| Tray | 250 | $ 2.00 | ||
Description
General part information
NANO120 Series
ARM® Cortex®-M0 NuMicro™ Nano120 Microcontroller IC 32-Bit Single-Core 42MHz 32KB (32K x 8) FLASH 64-LQFP (7x7)
