Optoelectronics

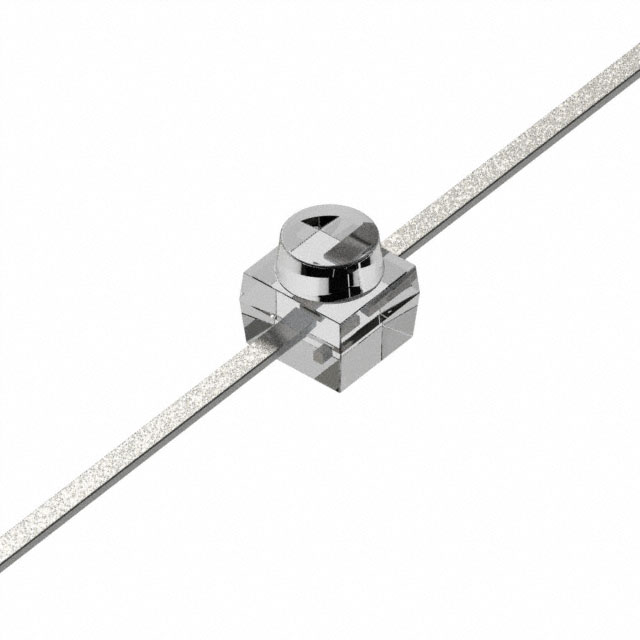

HLMP-P156-HK011
ActiveBroadcom Limited
LED RED CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-P156-HK011 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 0.5 mA |
| Height (Max) [Max] [z] | 2.44 mm |
| Lens Size [diameter] | 1.91 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 2 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 2.09 mm |
| Size / Dimension [y] | 2.21 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 75 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak [custom] | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.41 | |
| 10 | $ 1.57 | |||
| 100 | $ 1.14 | |||
| 500 | $ 0.97 | |||
| Digi-Reel® | 1 | $ 2.41 | ||
| 10 | $ 1.57 | |||
| 100 | $ 1.14 | |||
| 500 | $ 0.97 | |||
| Tape & Reel (TR) | 1500 | $ 0.80 | ||
Description
General part information
HLMP-P156 Series
Red 630nm LED Indication - Discrete 2V 2-SMD, Flat Leads
