Optoelectronics

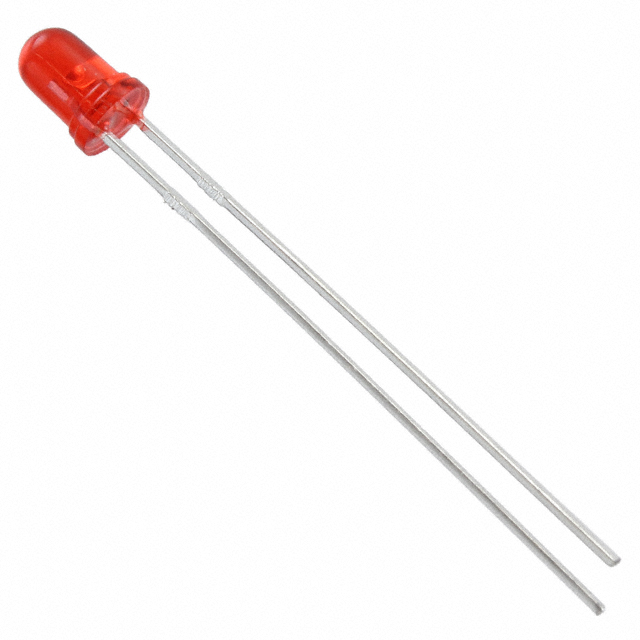

HLMP-Y301-F0000
ActiveBroadcom Limited
LED RED CLEAR T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-Y301-F0000 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.2 mm |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 19 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 626 nm |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.07 | |||
| 25000 | $ 0.06 | |||
Description
General part information
HLMP-Y301 Series
Red 626nm LED Indication - Discrete 2.1V Radial
