Technical Specifications
Parameters and characteristics for this part
| Specification | CCP-LCP(R) |
|---|---|
| Actual Diameter [diameter] | 2.1 mm, 2.5 mm |
| Actual Diameter [x] | 5.5 mm, 5.6 mm |
| Connector Style | Power DC Adapter |
| Contact Material - Plating | Bronze |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Jack |
| Convert From (Adapter End) [diameter] | 5.5 mm, 2.5 mm |
| Convert To (Adapter End) [diameter] | 5.5 mm, 2.1 mm |
| Features | Barrel Power Adapter |
| Gender | Female to Male |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts | 2 Conductors |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.76 | |
| 5 | $ 1.62 | |||
| 10 | $ 1.56 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.29 | |||
| N/A | 222 | $ 1.75 | ||
Description
General part information
CCP-LCP Series

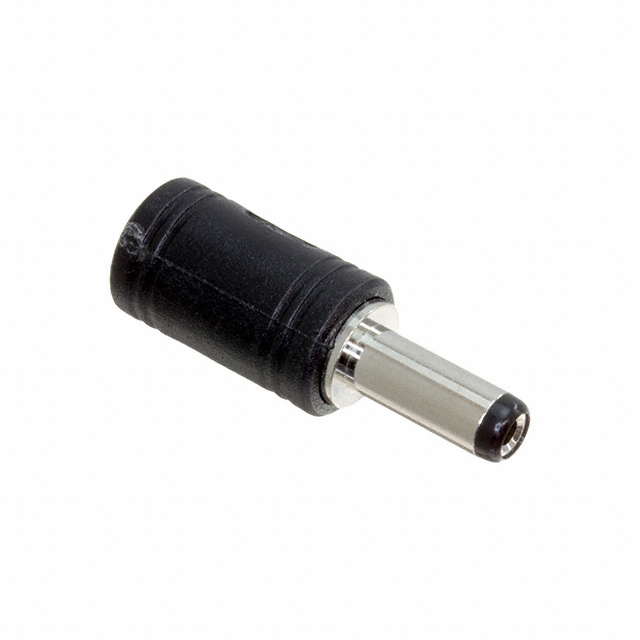

Adapter Connector Jack, 2.5mm ID x 5.5mm OD To Plug, 2.1mm ID x 5.5mm OD Free Hanging (In-Line)
