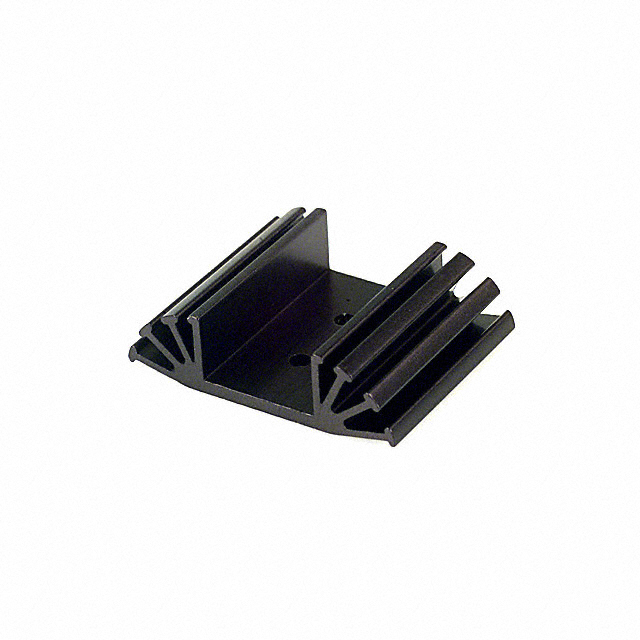

HEATSINK PWR DUAL BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Fans, Blowers, Thermal Management
7-345-2PP-BA
ActiveCTS Thermal Management Products
HEATSINK PWR DUAL BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-345-2PP-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height [x] | 14.05 mm |
| Fin Height [x] | 0.553 " |
| Length | 1.5 in |
| Length | 38.1 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6 W |
| Shape [custom] | Rectangular |
| Shape [custom] | Fins |
| Thermal Resistance @ Natural | 4.7 °C/W |
| Type | Board Level |
| Width [x] | 50.8 mm |
| Width [x] | 2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.08 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.92 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.59 | |||
| 250 | $ 2.43 | |||
| 500 | $ 2.35 | |||
| 1000 | $ 2.11 | |||
| N/A | 460 | $ 3.38 | ||
Description
General part information
7-345-2 Series
Heat Sink TO-220 Aluminum 6.0W @ 25°C Board Level
