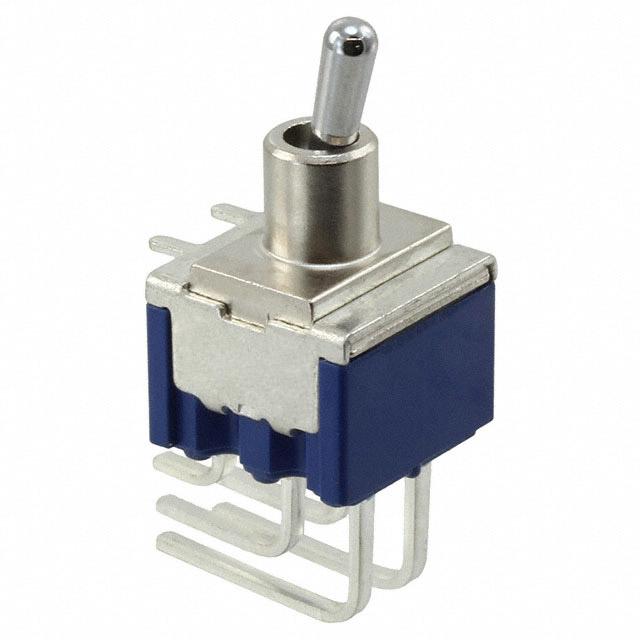

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Switches

Active

Nidec Components Corporation

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8G2016-Z

Actuator Length [x]	6.8 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Washable
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Electrical Life	Termination Style	Illumination	Mounting Type	Bushing Thread	Actuator Length [x]	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Features	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type
Nidec Components Corporation 8G2016-Z	4 A 6 A	50000 Cycles	PC Pin	Non-Illuminated	Right Angle Through Hole Vertical	Unthreaded	6.8 mm	On-On	125 V	30 V	Washable	-25 °C	80 C	DPDT	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.93

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical
