Switches

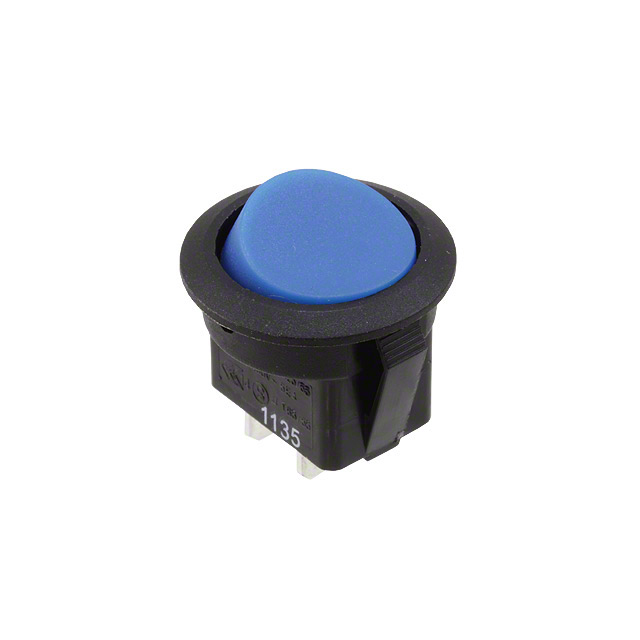

RR111C1700

Obsolete

ROCKER SWITCHES 16A 125VAC 4.8MM TAB OFF-ON

Search across all available documentation for this part.

Switches

Obsolete

ROCKER SWITCHES 16A 125VAC 4.8MM TAB OFF-ON

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Circuit	Approval Agency	Actuator Marking	Mounting Type	Color - Actuator/Cap	Termination Style	Switch Function	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)	Features
E-Switch RR111C1800	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	No Marking	Panel Mount Snap-In	Green	Quick Connect	On-Off	Round
E-Switch RR111C1100-214	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	No Marking	Panel Mount Snap-In	Black	Quick Connect	On-Off	Round - Illuminated	LED Red	12 VDC
E-Switch RR111C1121	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	O -	Panel Mount Snap-In	Black	Quick Connect	On-Off	Round
E-Switch RR111C1021-116	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	O -	Panel Mount Snap-In	Red	Quick Connect	On-Off	Round - Illuminated	Neon Red	125 VAC
E-Switch RR111C1023-116	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	ON OFF	Panel Mount Snap-In	Red	Quick Connect	On-Off	Round - Illuminated	Neon Red	125 VAC
E-Switch RR111C1921/ACC-P03	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	O -	Panel Mount Snap-In	Red	Quick Connect	On-Off	Round			Sealing Boot
E-Switch RR111C1700	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	No Marking	Panel Mount Snap-In	Blue	Quick Connect	On-Off	Round
E-Switch RR111C1000-116	10000 Cycles	-20 ░C	105 ░C	16 A	125 V	SPST	cUL UL VDE	No Marking	Panel Mount Snap-In	Red	Quick Connect	On-Off	Round - Illuminated	Neon Red	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
