Optoelectronics

6772312323F

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Search across all available documentation for this part.

Optoelectronics

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6772312323F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Orange
Millicandela Rating	600 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	6 V

Part	Current	Viewing Angle	Ingress Protection	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Panel Cutout Shape	Type	Voltage	Ratings	Wavelength - Peak	Millicandela Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6772312333F	30 mA	25 °	IP66 NEMA 4X	Orange	7.2 mm	0.28 in	Solder Lug	Round	LED	12 V	DC	605 nm	3500 mcd
DIALIGHT 6772312323F	30 mA		IP66 NEMA 4X	Orange			Solder Lug	Round	LED	6 V	DC		600 mcd	7.11 mm	0.28 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

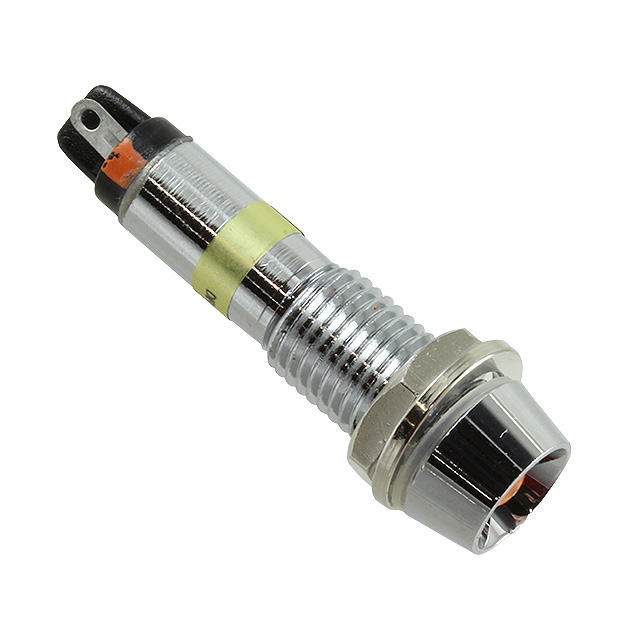

LED Panel Indicator Orange 6V 30mA Solder Lug
