Technical Specifications
Parameters and characteristics for this part
| Specification | 6SEP470M+TSS |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Height - Seated (Max) | 12 mm |
| Height - Seated (Max) [Max] | 0.472 in |
| Lead Spacing | 0.138 in |
| Lead Spacing | 3.5 mm |
| Lifetime @ Temp. | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 C |
| Package / Case | Radial, Can |
| Ripple Current @ High Frequency | 4.21 A |
| Ripple Current @ Low Frequency | 210.5 mA |
| Size / Dimension [diameter] | 0.315 in |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 6.3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.90 | |
| 10 | $ 1.46 | |||
| 50 | $ 1.34 | |||
| 100 | $ 1.11 | |||
| 500 | $ 0.89 | |||
| N/A | 0 | $ 2.21 | ||
| Tape & Box (TB) | 1000 | $ 0.84 | ||
| 2000 | $ 0.80 | |||
| 3000 | $ 0.77 | |||
| 5000 | $ 0.75 | |||
| 7000 | $ 0.73 | |||
| 10000 | $ 0.72 | |||
Description
General part information
6SEP Series

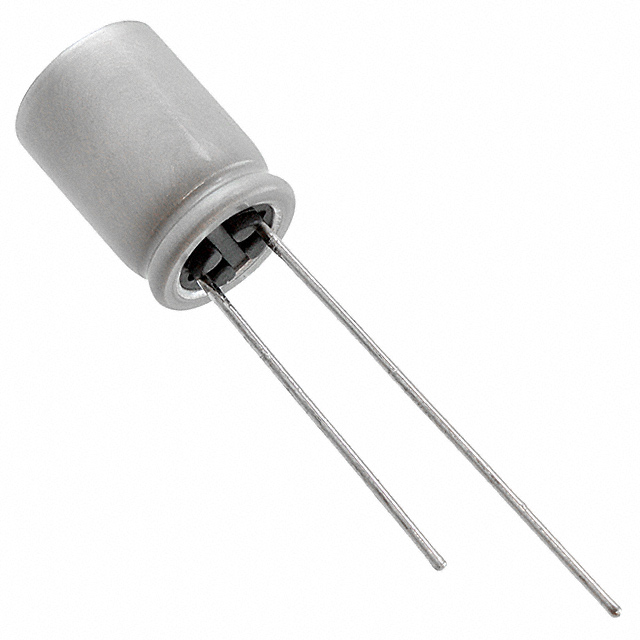

470 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 15mOhm 3000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
