BL03RN2R1Q1A

Obsolete

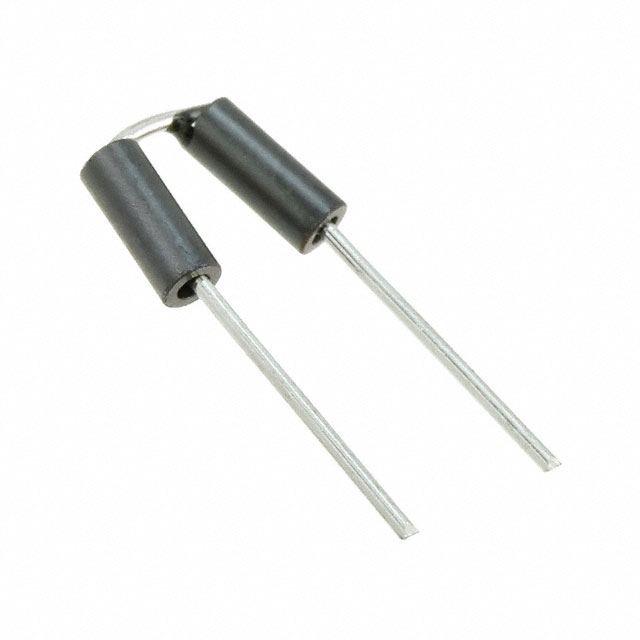

FERRITE BEAD AXIAL RAD 1LN

Search across all available documentation for this part.

Filters

Obsolete

FERRITE BEAD AXIAL RAD 1LN

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Mounting Type	Number of Lines	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension	Current Rating (Max) [Max]
Murata Electronics BL03RN2R1M1B	20 mOhm	6.5 mm	0.256 in	Through Hole	1	Axial Split Radial Bend	85 °C	-40 C	0.091 "	2.3 mm	6 A
Murata Electronics BL03RN2R1P1A	20 mOhm	6.5 mm	0.256 in	Through Hole	1	Axial Split Radial Bend	85 °C	-40 C	0.091 "	2.3 mm	6 A
Murata Electronics BL03RN2R1Q1A	20 mOhm	6.5 mm	0.256 in	Through Hole	1	Axial Split Radial Bend	85 °C	-40 C	0.091 "	2.3 mm	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

1 Ferrite Bead Axial, Split Radial Bend 6A 20mOhm
