Switches

RRA1GC112X

Active

SWITCH ROCKER DPDT 15A 125V

Search across all available documentation for this part.

Switches

Active

SWITCH ROCKER DPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA1GC112X

Actuator Marking	ON ON, Vertical
Actuator Type	Round
Approval Agency	UL, cUL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 ░C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V

Part	Electrical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Switch Function	Actuator Type	Approval Agency	Current Rating (Amps)	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Color - Actuator/Cap

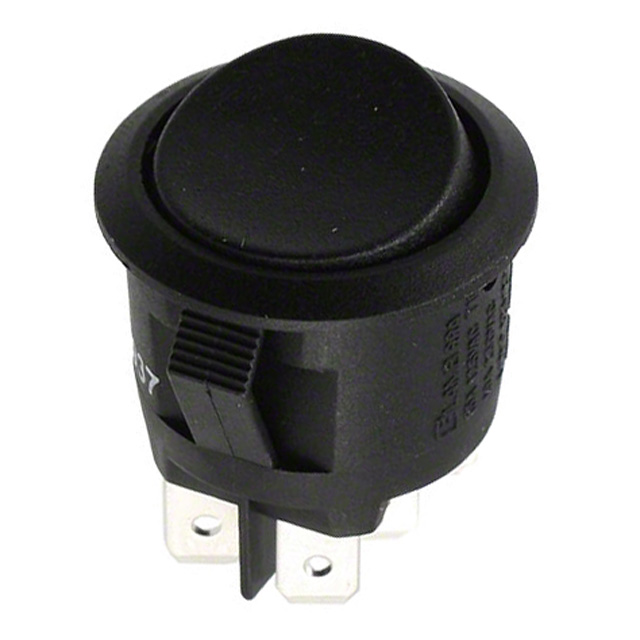

E-Switch RRA1GC1100	10000 Cycles	125 V	-20 ░C	105 ░C	Quick Connect	Panel Mount Snap-In	On-On	Round	cUL UL	15 A	DPDT	22 mm	No Marking	Black
E-Switch RRA1GC112X	10000 Cycles	125 V	-20 ░C	105 ░C	Quick Connect	Panel Mount Snap-In	On-On	Round	cUL UL	15 A	DPDT	22 mm	ON ON Vertical	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
