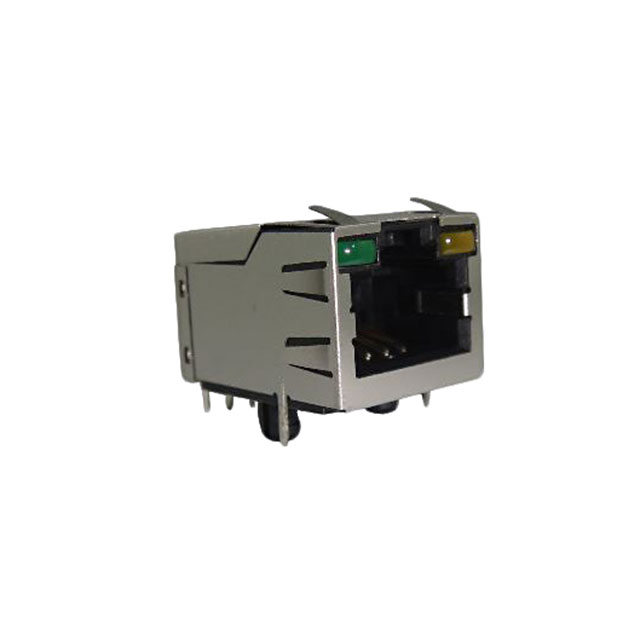

RJE60-188-54A1

Active

CONN MOD JACK 8PC8PC R/A SHIELDE

Search across all available documentation for this part.

Connectors, Interconnects

Active

CONN MOD JACK 8PC8PC R/A SHIELDE

Technical Specifications

Parameters and characteristics for this part

Specification	RJE60-188-54A1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Features	Board Lock
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 C
Orientation	90 °
Ratings	Cat6
Shielding	EMI Finger, Shielded
Tab Direction	Up
Termination	Solder

Part	Number of Rows	Mounting Type	Shielding	Connector Type	Housing Material	Ratings	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Number of Ports	Number of Positions/Contacts	Tab Direction	Termination	Contact Finish
Amphenol ICC (Commercial Products) RJE60-188-5411	1	Through Hole	EMI Finger Shielded	Jack	Thermoplastic	Cat6	Copper Alloy	Board Lock	50 µin	1.27 µm	90 °	85 °C	-40 C	Yellow - Green	1	8p8c (RJ45 Ethernet)	Up	Solder	Gold
Amphenol ICC (Commercial Products) RJE60-188-54A1	1	Through Hole	EMI Finger Shielded	Jack	Thermoplastic	Cat6	Copper Alloy	Board Lock	50 µin	1.27 µm	90 °	85 °C	-40 C	Green Yellow	1	8p8c (RJ45 Ethernet)	Up	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6
